LED strip light ACTILINE2534

ABSPMMAaluminum profile

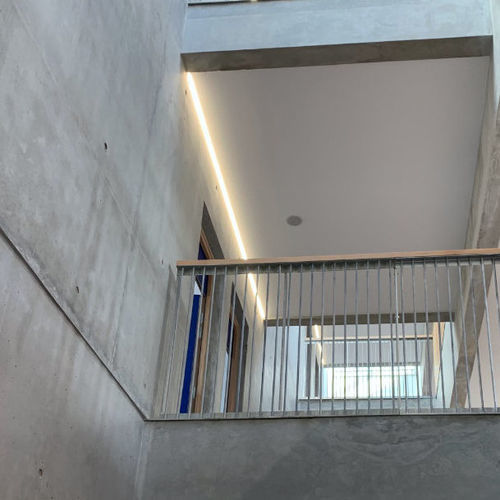

The ACTiLine2534A is an ultra-compact linear LED luminaire, specifically engineered for commercial spaces and circulation areas (corridors, lobbies, reception desks). Surface-mounted or recessed, it seamlessly integrates with various ceiling types. Equipped with an opal PMMA diffuser, it ensures perfectly uniform lighting along its entire length and optimal visual comfort with no visible dotting effect.

Key Benefits for Your Projects

• Absolute Visual Comfort: Flicker-free technology to enhance user well-being.
• High Customization: Wide selection of RAL finishes, color temperatures, and tailored cable lengths.
• Advanced Lighting Control: Compatible with standard building dimming protocols (DALI, DMX, Push-button).

Technical Specifications

• Luminous Flux: 1440 lm/
• Power Consumption: 12 W/m or 20 W/m
• Efficiency & Rendering: CRI > 80
• Color Temperatures (CCT): 2700K (Warm White), 3000K (Warm White), 4000K (Neutral White)
• Power Supply & Voltage: 24 VDC (External power supply unit)
• Control / Dimming: On/Off, DALI, DMX, Push-button
• Lifespan: 36,000 hours (L70B50)
• Protection Ratings: Class III | IK05
• Dimensions: Custom-made / Contact us for details

Materials & Finishes

• Body: Robust aluminum profile.
• Diffuser: Opal PMMA (homogeneous light diffusion).
• End Caps: ABS (standard) or aluminum (optional).
• Standard Finishes: Natural anodized gray, Signal white RAL 9003, Matte black RAL 9005.
• Finishes on Request: Other colors from the RAL chart.

Installation & Customization (Options)

• Wiring: 2 m cable (2x0.75 mm²) with rear outlet (standard) or end outlet (optional).
• Customizable Cable Length: On request (please specify length in meters).
