LED floodlight ACTiKit1002

roadfor public spacesurface-mounted

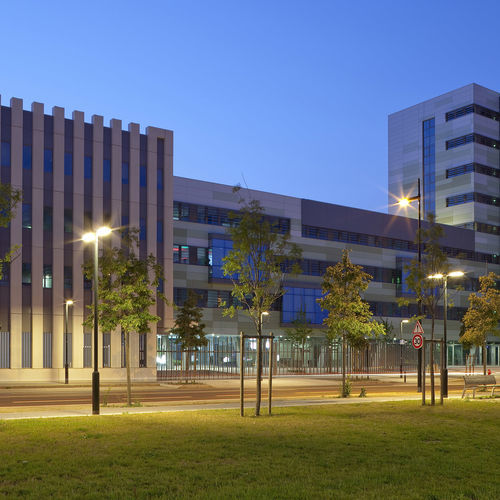

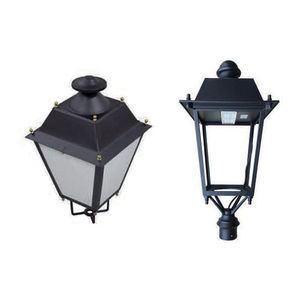

The ACTiFit1002 is a high-performance LED lighting module specifically engineered for the sustainable retrofit and upgrading of public and urban lighting fixtures (streetlights, lanterns, bollards, and floodlights).
This eco-efficient solution modernizes existing lighting infrastructure by replacing obsolete or energy-intensive technologies (compact fluorescent, halogen, metal halide, or High-Pressure Sodium - HPS) ranging from 18W to 250W.

Key Features & Benefits

• Maximum Reliability (Driverless Technology): Powered directly by 230VAC, these modules eliminate the need for external transformers—removing the primary cause of driver failure and significantly reducing maintenance costs.
• Custom Integration: A highly adaptable design that respects and preserves the aesthetics of the original luminaire.
• Simplified Installation: Quick on-site intervention for a cost-effective rollout.
• High Energy Efficiency: Optimized power factor of 0.98.

Applications & Compatibility
Ideal for LED upgrades of fixtures from major architectural and urban lighting brands, including: Eclatec, GHM, HESS, Selux, Thorn, Bega (and other market-standard models).

Technical Specifications
Lighting Performance

• Luminous Efficacy: 90 - 100 lm/W
• Color Rendering Index (CRI): > 80

Available Color Temperatures (CCT):

• 2700K (Warm White)
• 3000K (Warm White)
• 4000K (Neutral White – ideal for roadways and security)

Beam Angle: Custom-tailored to match the optics of the original fixture.

Electrical Data & Durability

• Power Consumption: 5W to 120W (Adaptive range)
• Power Supply: 230VAC +/-10%
• Power Factor: 0.98
• Dimming: Phase-cut dimming compatible
• Lifespan: 36,000 hours (L70B50)
• Dimensions: Customized based on the profile of the luminaire to be equipped.
