DALI light fixture ACTIFIT1006

surface-mountedLEDlinear

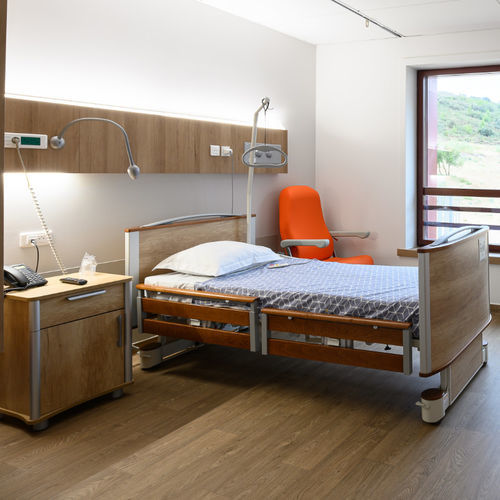

The ACTiFit1006 is a high-performance LED retrofit kit specifically designed for upgrading and relamping wooden wall lights and headboard trunking systems in healthcare environments. This integrated lighting system delivers three essential functions in a single product: ambient, reading, and night lighting.
Thanks to its smart design, it modernizes existing lighting systems without requiring any layout changes, ensuring significant time savings during installation.

Key Features & Installer Benefits

• Thermal & Electrical Plug & Play: Direct 230V connection with no external driver required, ensuring ultra-fast installation.
• Zero-Renovation Maintenance: Clip-on luminaire mounting and removal, requiring no heavy intervention on the wooden trunking.
• Simplified Connectivity: Quick-connect terminals on both the luminaire and the power cord.
• Modular Lighting: Independent control of direct and indirect light distribution, compatible with dimming systems (push-button or DALI protocol).

Typical Applications
Perfectly tailored to meet the strict requirements of healthcare and socio-medical environments:

• Hospital and clinic rooms
• Long-term care facilities and nursing homes
• Retirement homes and rehabilitation centers

Technical Specifications

• Luminous Flux : Up to 2560 lm/m (Homogeneous lighting without shadows)
• Power Consumption : Eco-designed: 13 W/m, 20 W/m, 27 W/m
• Power Supply : 230V +/-10%, 50/60 Hz (Power Factor: 0.98)
• Color Rendering Index : CRI > 84 (Optimal visual comfort for both medical staff and patients)
• Color Temperatures : 3000K (Warm White) or 4000K (Neutral White)
• Dimming : Phase-cut dimming as standard (DALI optional via accessories)
• Lifespan : 50,000 hours (L90B10) – High durability
• Protection Ratings : IP40 / IK05 / Electrical Class I

Materials, Finishes & Customization

• Robust Structure: Extruded aluminum profile.
• End Caps: ABS (standard) or aluminum (heavy-duty).
• Design & Integration: Available in Anodized Gray, Glossy White (RAL 9016), Matte Black (RAL 9005), or any other color upon request (custom RAL chart).
• Precision Optics: Opal PMMA (soft diffusion), clear prismatic polycarbonate, or clear polycarbonate.
• Dimensions: Available in several standard lengths or custom-made to fit any existing trunking configuration.
• Included in Delivery: Wall-mounting brackets and quick-connectors.
