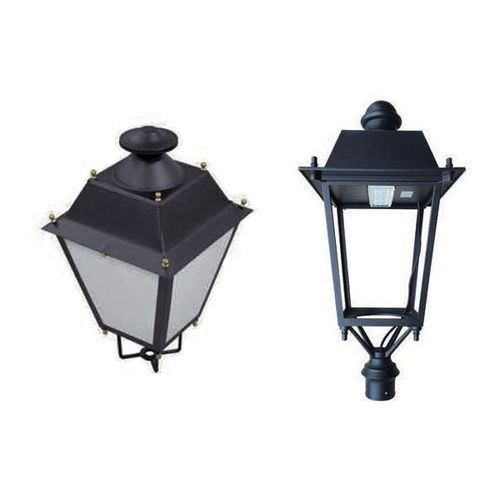

Classic urban lantern ACTIKIT1004

metalglassfloor-standing

The ACTiFit1004 is a high-performance LED retrofit (relamping) kit designed for the eco-efficient modernization of aging or obsolete traditional lanterns. Ideal for urban renewal and heritage preservation projects, it serves as a direct, energy-efficient replacement for older 70W to 250W mercury vapor and high-pressure sodium (HPS) lamps.

Key Benefits

• Cost-Effective & Sustainable: A smart alternative to replacing the entire luminaire, cutting investment costs by half while significantly extending the lifespan of your existing lighting assets.
• Plug & Play: Delivered ready-to-mount and pre-wired for ultra-fast, hassle-free field installation.
• Compliance & Funding: Eligible for Energy Savings Certificates (CEE in France, standardized operation RES-EC-104) and 100% compliant with strict light pollution regulations.

Typical Applications & Compatibility
The ACTiFit1004 kit is custom-tailored to seamlessly integrate into the market's leading traditional and heritage lanterns, including:

• Lenzi: Montmartre, Lavoisier...
• Lumières de France: Rivoli...
• Philips: Charles...
• Ragni: Vence...
• Thorn: EP140, EP145...
• Schréder: Valençay...

Technical Specifications

• Power Range : 20W to 120W (Replaces 70W to 250W HPS/Mercury)
• Luminous Efficacy : 110 lm/W
• Color Temperature (CCT) : 2700K (Warm White) | 3000K (Warm White)
• Color Rendering Index (CRI) : 80
• Optics / Beam Angles : Wide Street, Narrow Street, 360°
• Control / Dimming : Autonomous dimming (astro-dimming) or DALI protocol
• IP Rating & Protection Class : IP65 | Class II
• Lifespan : 60,000 hours (L70B10)
• Power Supply & Power Factor : 230VAC ±10% | PF > 0.95
• Dimensions : Custom-made (adapted to the target lantern)
• Quality Assurance: Product designed and manufactured in France (Made in France) / CE Certified.
