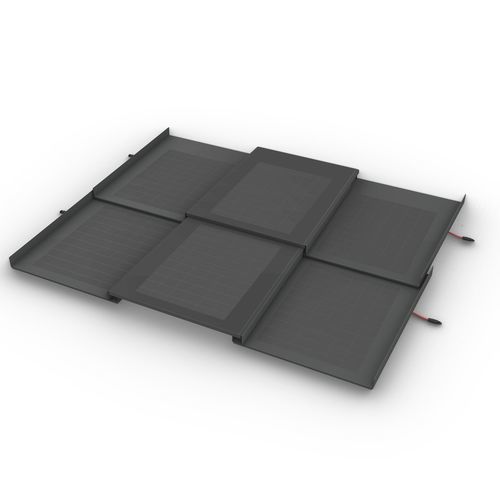

PV roof tile ARDESIA 450

flatsolarglass

Product Description
Flat photovoltaic tiles with tempered solar glass protection on a metal body.

Photovoltaic Embrice

• Solar cell: Monocrystalline Half-Cut 182 mm cells
• Photovoltaic module: Glass + EVA + Monocrystalline solar cell + EVA + BLACK PET
• Support/Body: Pre-galvanized metal
• Body coating: Powder coated
• Glass: Tempered glass with 3.2mm thickness, high light transmission, anti-reflective
• Junction box: IP68, Class II (Double insulation), TUV certified
• Connectors: TUV certified MCA
• Cable: 2 x 2.5mm² TUV certified
• Operating temperature: -20° C to +80° C

Electrical Characteristics

• Peak power at STC (Pmax/W): 29Wp
• Maximum power voltage (Vmp/V): 6 V
• Maximum power current (Imp/A): 4.83 A
• Efficiency: ≥24%

Mechanical Characteristics

• Dimensions: 46x44x45cm
• Weight: 3.8Kg

Flat Photovoltaic Coppo

• Solar cell: Monocrystalline Half-Cut 182 mm cells
• Photovoltaic module: Glass + EVA + Monocrystalline solar cell + EVA + BLACK PET
• Support/Body: Pre-galvanized metal
• Body coating: Powder coated
• Glass: Tempered glass with 3.2mm thickness, high light transmission, anti-reflective
• Junction box: IP68, Class II (Double insulation), TUV certified
• Connectors: TUV certified MCA
• Cable: 2 x 2.5mm² TUV certified
• Operating temperature: -20° C to +80° C

Electrical Characteristics

• Peak power at STC (Pmax/W): 29Wp
• Maximum power voltage (Vmp/V): 6 V
• Maximum power current (Imp/A): 4.83 A
• Efficiency: ≥24%

Mechanical Characteristics

• Dimensions: 38x36x45cm
• Weight: 3.2Kg

Features / Technical Specifications

• Flat photovoltaic tiles
• Tempered solar glass protection
• Pre-galvanized metal body
• Powder coating
• Monocrystalline Half-Cut 182 mm cells
• Efficiency ≥24%
• Peak power: 29Wp
• Dimensions: 46x44x45cm (Embrice), 38x36x45cm (Flat Coppo)
• Weight: 3.8Kg (Embrice), 3.2Kg (Flat Coppo)
• Operating temperature: -20° C to +80° C
• TUV certifications
