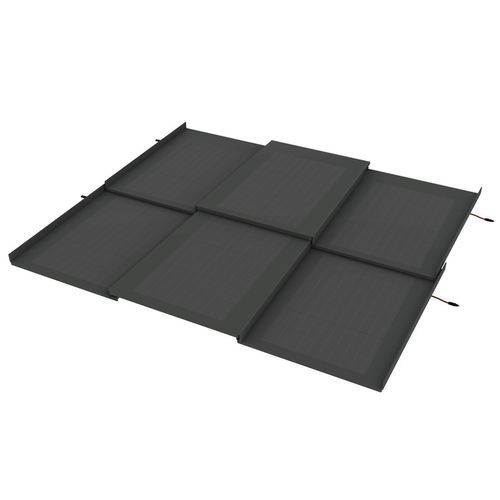

PV roof tile ARDESIA 600

flatsolarglass

Product Description
Flat photovoltaic tiles with tempered solar glass protection on a metal body.

Photovoltaic Shingle

• Solar Cell: Monocrystalline Half-Cut 182 mm cells
• Photovoltaic Module: Glass + EVA + Monocrystalline Solar Cell + EVA + BLACK PET
• Support/Body: Pre-galvanized metal
• Body Coating: Powder coated
• Glass: Tempered glass with 3.2mm thickness, high light transmission, anti-reflective
• Junction Box: IP68, Class II (Double insulation), TUV certified
• Connectors: TUV certified MC4
• Cable: 2 x 2.5mm² TUV certified
• Operating Temperature: -20° C to +80° C

Electrical Characteristics

• Peak Power at STC (Pmax/W): 41Wp
• Maximum Power Voltage (Vmp/V): 6 V
• Maximum Power Current (Imp/A): 6.83 A
• Efficiency: ≥24%

Mechanical Characteristics

• Dimensions: 49x47x60cm
• Weight: 5.5Kg

Flat Photovoltaic Tile

• Solar Cell: Monocrystalline Half-Cut 182 mm cells
• Photovoltaic Module: Glass + EVA + Monocrystalline Solar Cell + EVA + BLACK PET
• Support/Body: Pre-galvanized metal
• Body Coating: Powder coated
• Glass: Tempered glass with 3.2mm thickness, high light transmission, anti-reflective
• Junction Box: IP68, Class II (Double insulation), TUV certified
• Connectors: TUV certified MC4
• Cable: 2 x 2.5mm² TUV certified
• Operating Temperature: -20° C to +80° C

Electrical Characteristics

• Peak Power at STC (Pmax/W): 41Wp
• Maximum Power Voltage (Vmp/V): 6 V
• Maximum Power Current (Imp/A): 6.83 A
• Efficiency: ≥24%

Mechanical Characteristics

• Dimensions: 48x46x60cm
• Weight: 5.3Kg

Features / Technical Specifications

• Flat photovoltaic tiles
• Tempered solar glass protection
• Pre-galvanized metal body
• Powder coating
• Monocrystalline Half-Cut 182 mm cells
• Module efficiency: ≥24%
• Peak power: 41Wp
• Dimensions: 49x47x60cm (shingle), 48x46x60cm (flat tile)
• Weight: 5.5Kg (shingle), 5.3Kg (flat tile)
• Operating temperature: -20°C to +80°C
• Certifications: TUV, IP68, Class II
