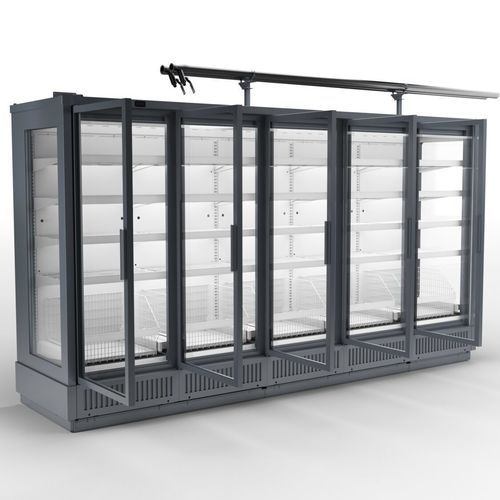

Upright refrigerated display case KALEA FREEZE SPI

shelffor shopmetal

Overview
The technical components of KALEA FREEZE SPI are housed in the extendable base of the device. Thanks to the consistent design of the KALEA product families, refrigeration and freezer devices can be placed side by side.

Key features

• Semi plug-in installation enabling immediate readiness for use and quick installation through multiplex connections.
• Technical components located in an extendable base for service access without removing the product. Inbox technology ensures the remaining refrigeration circuit maintains operation during maintenance.
• Multi-circuit technology with less than 150 g R290 per circuit for higher energy efficiency and reduced risk of failure.
• Available depths: 84 cm and 99 cm; available as line unit, stand alone and end unit.
• Condensate water drain designed for connection to existing building condensate systems.
• Heat recovery: piping included to route waste heat to an external pump station and condenser to enable reuse of waste heat for heating storage or other areas.
• Automatic defrosting available in all temperature ranges.

Detailed product descriptions

• FLEXIBLE SYSTEM: Factory-equipped piping and flow control valve for fast installation; Inbox technology enables uninterrupted operation during maintenance.
• HEAT RECOVERY: Waste heat from the freezer can be used for heating storage areas; piping allows directing heat to an external pump station and condenser, avoiding a separate machinery room.
• HIGH ENERGY SAVINGS: Multi-circuit R290 implementation reduces energy consumption and failure risk. Number of circuits varies by number of doors:
  • 5 doors = 3 circuits
  • 4 doors = 2 circuits
  • 3 doors = 2 circuits
  • 2 doors = 1 circuit
• ENVIRONMENT AND CLIMATE: Hermetic and sealed cooling system to minimise leakage; units use natural refrigerant propane (R290) and are VDE-approved at high safety level.
• COMPATIBLE WITH AMS: Compatible with AHT Active Monitoring System (AMS) for proactive detection and monitoring of refrigeration units.
• VISUAL MERCHANDISING: Anti-fog doors and vertical LED lighting (5000K and 6500K options) for product presentation; customization options include end glass walls, bumper designs and interior fittings.

Accessories & customization
Wide range of accessories available; KALEA can be adapted to store design with multiple colour options and interior/exterior customisations.

Technical specifications

• Temperature range (Freezing): 3L1 -15°C to -18°C.
• Multi-circuit configuration: depends on door count (5 doors = 3 circuits; 4 doors = 2 circuits; 3 doors = 2 circuits; 2 doors = 1 circuit).
• Refrigerant: R290 (propane), multi-circuit (<150 g R290 per circuit).
• Installation type: Semi plug-in; technical components in extendable base (Inbox technology).
• Depth options: 84 cm and 99 cm.
• Automatic defrost: available in all temperature ranges.
• Lighting: vertical LED bars, options 5000K or 6500K.
• Heat recovery: integrated piping to external pump station and condenser for reuse of waste heat.
• Safety/Approvals: VDE-approved at highest safety level (hermetic, sealed system).
• Available configurations: line unit, stand alone, end unit; optional end cabinet on both sides.
• Energy efficiency: energy class varies by specific variant and features in accordance with EU regulations (varies by configuration).
