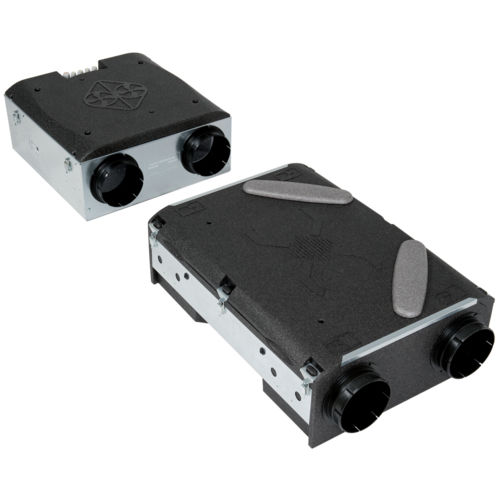

Centralized ventilation unit DEE FLY MODULO

heat-recoverydual-flowresidential

2 versions: self-balanced (constant airflow) or humidity-controlled (constant pressure). Micro-watt motor. Low energy consumption. Over-ventilation via BOOST function. Automatic heat exchanger bypass. Easy to install. Heat Exchanger: Expanded polypropylene outer casing Counterflow heat exchanger 85 % efficiency at 120 m3/h 4 x Ø 160 mm connections F7 filter on fresh air and G4 filter on exhaust Bypass version with extension Flat drain pipe supplied Motor: Metal panel casing 2 x 3-speed micro-watt motors on ball bearing with thermal protection 4 x Ø 160 mm connections Various installation configurations possible: Ceiling-mounted: requires a suspension kit for heat exchanger and motor Horizontal on floor: requires a floor mounting kit for heat exchanger and motor Horizontal on wall: requires a mounting kit for heat exchanger and motor, along with a condensate drain kit Voltage: 230 V – 50 Hz single phase. ADVANTAGES • More convenient: Builded in two different parts, it answers perfectly to any kind of installation. • Cleaner air: The incoming air is filtered to eradicate outdoor pollution. • More comfort: thanks to a high performance exchanger that control the indoor air while isolating any external noises. DESCRIPTION Heat exchanger • Expanded polypropylene casing. • Counter flow heat exchanger • 4 x Ø 160 mm connections. • 1 Fine particles air supply filter and 1 Pollen exhaust filter. • By-pass as standard. • Flat drain pipe delivered with product. Motor • Galvanised sheet casing. • 2 x 3-speed micro-watt motors on ball bearings with thermal protection. • 4 x Ø 160 mm connections.
