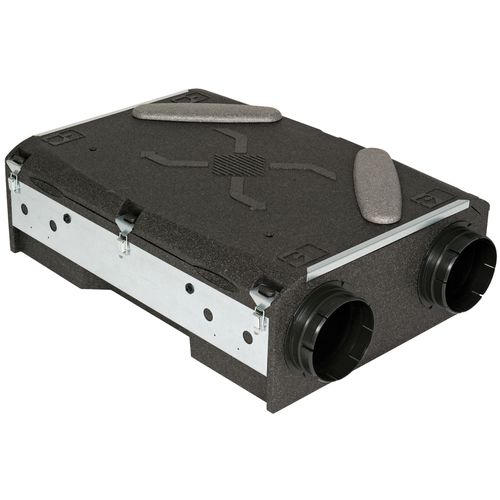

Heat exchanger DEE FLY MODULO

Modular heat recovery ventilation and air purification solution to adapt to all your installation configurations. Heat recovery ventilation and air purification solution comprising 2 units - heat exchanger and motor units). Dee Fly Modulo® delivers filtered fresh air by eliminating outdoor pollution, while adapting to all installation configurations. more modularity: the unit comes in two parts for easy installation in all configurations, more purified air: fresh air is filtered to eliminate outdoor pollution, more comfort: balances indoor air while insulating against outdoor noise pollution. General and permanent ventilation of dwelling with heat recovery on exhaust air (via heat exchanger) to pre-heat incoming air. This air is filtered and ensures that indoor air remains clean. heat exchanger: expanded polypropylene, 4 x Ø 160 mm connections, filters: 1 x fine particles filter on fresh air, 1 x pollen filter on exhaust. bypass included (self-balanced model), built-in pressure sensor for control, flat siphon supplied. motor: sheet metal box, 2 MICRO-WATT 3-speed motors mounted on ball bearings with thermal protection, 4 x Ø 160 mm connections. suspended attachment to ceiling with suspension kit for each exchanger and each motor, horizontal floor installation with floor attachment kit for each exchanger and each motor, horizontal on wall with two kits: one floor attachment kit per exchanger and per motor, one condensate evacuation kit.
