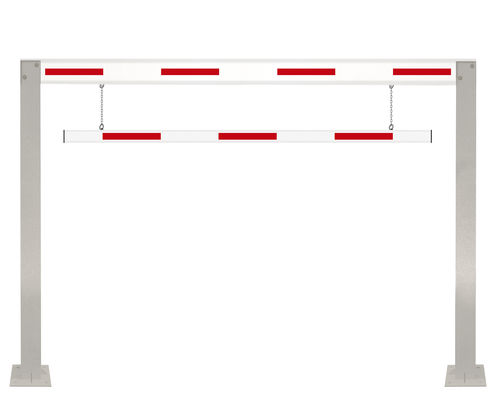

Height restriction barrier
This height restriction barrier provides the ideal solution for limitation of access areas of vans and lorries to areas such as staff car parks or (underground) low-level parkings or commercial centres.
Optionally, the height-restriction barrier device can be equipes with a pivoting arm so it can be opened when a truck needs access. The height restriction barrier is tailor made to the height and width needed for the specific situation.
Made of extruded aluminum, 3 mm thick.
Dimensions column: 100 x 100 mm – height: 2 up to max 5 meters – color 9006 (gray) or RAL2000 (orange).
Dimensions cross bar: 80 x 140 mm – color: RAL 9010 (white), provide with red reflective stripes.
Standard passage width: 3 – 3,5 – 4 – 4,5 – 5 – 5,5 – 6 – 7 meter.
Attachment to surfaces with expansion bolts.
Simple (dis)assembly of the cross bar using supplied bolts.
Reinforced foot: 400 x 400 mm
