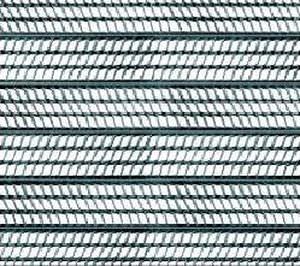

Steel wire mesh RIB LATH
for ceilingdiamond mesh

steel wire mesh
steel wire mesh
steel wire mesh
steel wire mesh
steel wire mesh
steel wire mesh
steel wire mesh
Add to favorites
Compare this product


for ceiling
Mesh type
diamond mesh


This lath has eighteen ribs approximately 1/8 inch high, spaced 1½ inches on center to provide additional rigidity for horizontal stucco applications. There are approximately 8,500 openings or keys per square yard to aid in keying. 2.75 lb. and 3.4lb. may be used for horizontal spans up to 16 o.c. and 19 o.c. respectively when installation follows ASTM C1063. This product is also used extensively as a base for ceramic tile. Nominal sheet size 27 x 97 Packaging: 10 pcs. (20 square yards) per bundle - 50 bundles (1000 square yards) per pallet. All diamond mesh lath is produced from hot dip galvanized steel per ASTM A653, A924 and C847.


No catalogs are available for this product.
