Expanded polystyrene (EPS) formwork block ICF R30

for wallinsulatingcorner

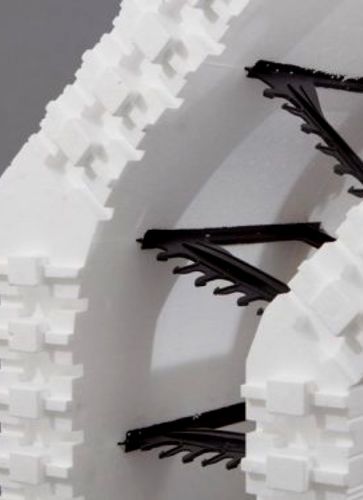

Amvic ICF R30 is a higher performance ICF block where EPS panel thickness has been increased by 30% making it the highest R-value of any factory assembled block in the industry. The patented FormLock™ interlock has also been improved with the addition of integrated drainage channels. The Amvic ICF R30 block is designed to meet the ever-increasing energy efficiency requirements. Features Thermal Resistance - R30 hr.ft2.F/Btu (5.28 m2K/W) EPS Panel Thickness - 3.25” (82.5mm) Web Spacing - 8” (203mm) on center Available Core Sizes - 6” (152mm), 8” (203mm) at 16” (406mm) high Available Blocks - Straights, 90° corner, 45° corner, Taper top, Brickledge
