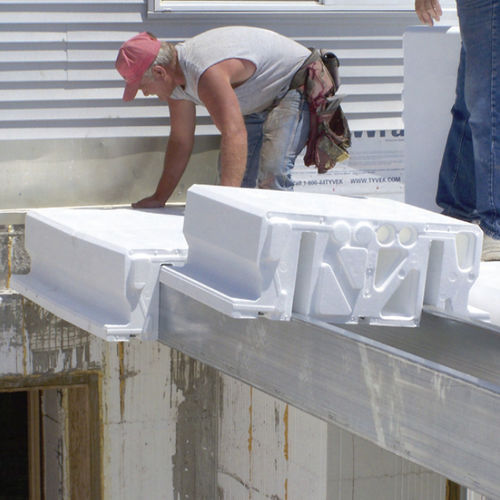

Polystyrene formwork block AMDECK

for flooringinsulating

The AmDeck® Floor and Roof System implements full 10″ deep lightweight steel joists (Gauge 12, 14 or 16 depending on application) to support construction loads. As a result, the shoring can be placed up to 20 ft on centre which is four times less than competing products, significantly reducing construction costs. PROVIDES STRUCTURE One-way concrete floor / roof joists which are formed by the AmDeck® Floor and Roof System can span approximately 30 to 35 ft using normal concrete mixes and conventional reinforcing steel. Spans of greater than 40 ft can be achieved using higher strength concrete and post-tensioned reinforcing cable strands.
