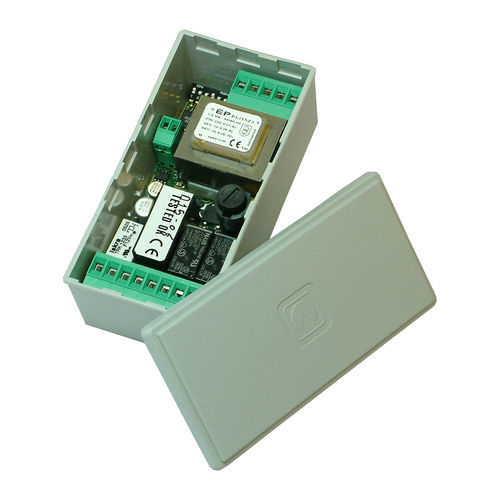

Home automation system control unit C/C

central

Features

• Allows opening and closing of all building closures simultaneously via a centralized command.
• Compatible with home automation systems.
• Equipped with 6 DIP switches to manage sash staggering and operating time.
• Power supply 230 VAC and push-button control in low voltage.
• The control unit can be housed in a flush-mount box or alternatively inside the actuator.
• PCB dimensions: 47 x 102 x h35 mm.
• External enclosure dimensions: 55 x 108 x h42 mm.

Wiring diagram
Diagram identified as "Schema Centralina CC-T6" (PDF, 188 KB).

Junction box
Housing in flush junction box model GW48003. External dimensions WxHxD (mm): 118 x 96 x 70. This solution makes the system convenient and accessible.

Flush-mounted box
Housing in flush box BT 504E (dimensions: 133 x 74 x 53.5 mm) with 2 extensions BT 504ESE (adapters to increase the box depth by 2 cm). Final dimensions: 133 x 74 x 73.5 mm. This solution allows positioning the control unit directly in the push-button box.

Internal housing
Housing inside the actuator. External enclosure dimensions: 55 x 108 x h42 mm. N.B. only if actuator length allows.

Technical characteristics / specifications

• Type: automatic control unit for closures (Control unit C/C).
• Compatibility: home automation systems.
• Power supply: 230 VAC; push-button control in low voltage.
• Controls: 6 DIP switches for sash staggering and operating time.
• PCB dimensions: 47 x 102 x h35 mm.
• External enclosure dimensions: 55 x 108 x h42 mm.
• Housing options: junction box GW48003 (118 x 96 x 70 mm); flush box BT 504E with 2 extensions BT 504ESE (final dimensions 133 x 74 x 73.5 mm); internal housing in actuator (if space allows).
• Technical document available: Wiring diagram Schema Centralina CC-T6 (PDF, 188 KB).
