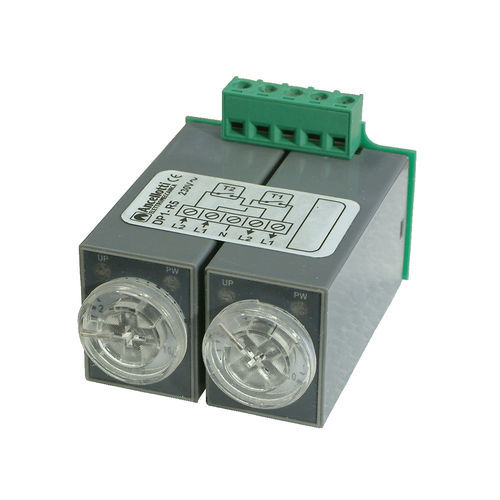

Home automation system control unit DP1

Features:

• Hold-to-run function: the button must be kept pressed until the desired opening or closing is reached.
• Compatible with home automation systems.
• Equipped with 2 adjustment knobs (0-10 s) to manage leaf offset on opening and closing.
• Power supply and push-button control: 230 VAC.
• The control unit can be housed in a flush-mounted box, in a junction box or inside the lock case.
• Electronic board dimensions: 46 x 60 x h38 mm.

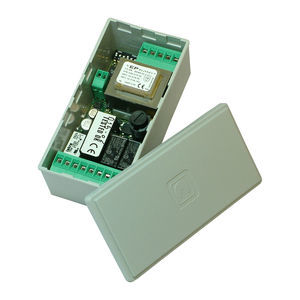

• External enclosure dimensions: 55 x 67 x h42 mm.

Documentation:
Technical drawing available: "Schema Centralina DP1-R5" (PDF, 118 KB).

Junction box:
Housing in flush-mounted junction box GW48003. External dimensions WxHxD (mm): 118 x 96 x 70. This solution makes the installation convenient and accessible.

Flush-mounted box:
Housing in flush-mounted box BT 504E (dimensions: 133 x 74 x 53.5 mm) with 2 extensions BT 504ESE (adapters to increase the flush box depth by 2 cm). Final dimensions: 133 x 74 x 73.5 mm. This solution allows positioning the control unit directly in the push-button box.

Internal housing:
Housing inside the lock case. External enclosure dimensions: 55 x 67 x h42 mm. (Only if the length of the lock case allows.)

Technical specifications:

• Model: DP1
• Function: hold-to-run control
• Compatibility: home automation systems
• Adjustments: 2 adjustment knobs, range 0-10 seconds (manages leaf offset on opening and closing)
• Power supply and push-button control: 230 VAC
• Electronic board dimensions: 46 x 60 x h38 mm
• External enclosure dimensions: 55 x 67 x h42 mm
• Junction box housing GW48003: 118 x 96 x 70 mm
• Flush-mounted box housing BT 504E: 133 x 74 x 53.5 mm (with 2 BT 504ESE extensions final depth 73.5 mm)
• Technical documentation available: Schema Centralina DP1-R5 (PDF, 118 KB)
