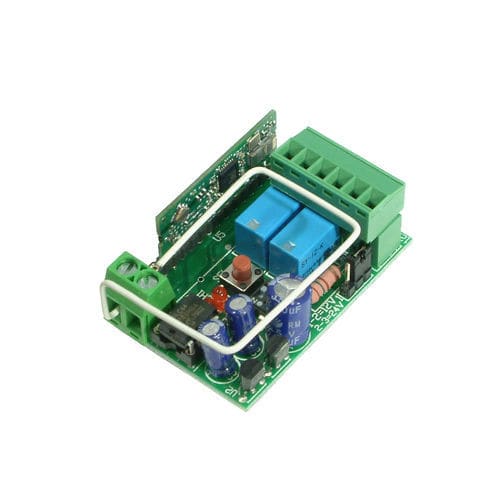

Radio frequency receiver RX2

Bluetoothmulti-channelcontrol

Features:

• Designed to be used in conjunction with the C/C control unit.
• Receiver can be mounted together with the control unit in a recessed junction box or, alternatively, inside the lock case.
• Auto-learning memory for up to 500 codes.
• Operating frequency: 433.92 MHz.
• Power supply: 24 VAC.
• Optional Bluetooth module available for control and management via app.
• Receiver electronic board dimensions: 34 x 51 x h22 mm.
• External receiver enclosure dimensions: 55 x 67 x h42 mm.
• TX2 remote control dimensions: 36 x 62 x h14 mm.
• TX2-P wall remote dimensions: 72 x 72 x h19 mm.

Junction box:
Recessed junction box model GW48003. External dimensions WxHxD (mm): 118 x 96 x 70. This solution facilitates convenient and accessible installation.

Internal housing:
Mounting inside the lock case. External container dimensions: 55 x 67 x h42 mm. Note: only possible if the lock case length allows.

Remote controls:

• TX2 remote control (included in system documentation).
• TX2-P wall-mounted remote and fixing bracket.
• TX24 and TX6 6-channel remotes for multi-channel configurations; multiple TX6 units can be combined in one housing (from 2 up to 6 units).

Technical specifications:

• Compatibility: to be used with C/C control unit.
• Memory: up to 500 auto-learning codes.
• Operating frequency: 433.92 MHz.
• Power supply: 24 VAC.
• Optional module: Bluetooth module available for app management.
• Receiver electronic board dimensions: 34 x 51 x h22 mm.
• External receiver enclosure dimensions: 55 x 67 x h42 mm.
• TX2 remote dimensions: 36 x 62 x h14 mm.
• TX2-P wall remote dimensions: 72 x 72 x h19 mm.
• Junction box GW48003 dimensions: 118 x 96 x 70 mm (WxHxD).
