Roller shutter blind actuator ROLLER KIT REVOLUX

Venetianhomecommercial

Overview
The Revolux Kit is a tubular motor solution for rolling shutters and sun blinds. The motors can be combined with ADI control units to create fully automated systems, including radio controls. A wide availability of adapters and installation accessories allows the system to meet diverse application requirements. Three automation kits are available for 30 kg, 60 kg and 90 kg shutters respectively, complete with accessories for installation.

Key details

• Available motor series: 45, 59 and 92.
• CSM versions available for manual emergency operation in case of power supply failure.
• Engine supplied with a 1.9 m cable for electrical connection.
• Simple device for easy and accurate limit stop adjustment.

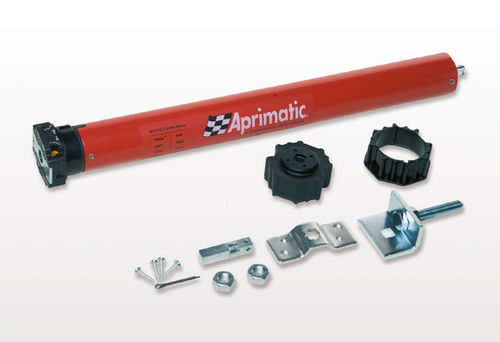

Table - Kit contents
ITEM NUMBER | KIT DESCRIPTION | Pcs.
- | Revolux 45S tubular motor (20Nm-30Nm or 50Nm version) | 1
- 43380/156 | Octagonal adapter - Ø60 | 1
- 43380/057 | Bracket with square shaft 10 for direct insertion in existing walls | 1
- 43380/083 | Support with square shaft 10 | 1

Additional information
The motors are suitable for automating rolling shutters and sun blinds and are designed to be integrated with the Aprimatic ADI control units. The kit includes installation accessories and specific adapters to match application needs.

Characteristics / technical specifications

• Product family: Revolux tubular motors and kits.
• Motor series: 45, 59, 92.
• Available torque/versions example: Revolux 45S (20 Nm - 30 Nm or 50 Nm options).
• Emergency manual operation: CSM versions available.
• Power/connection cable: 1.9 m integrated cable.
• Limit stop adjustment: manual adjustment device included.
• Kits available for shutter weights: 30 kg, 60 kg, 90 kg (each kit complete with accessories).
• Included kit items (examples): tubular motor, octagonal adapter Ø60, bracket with square shaft 10, support with square shaft 10.
