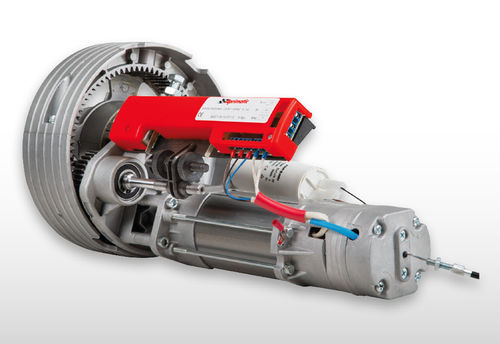

Roll-up door operator RO-MATIC RS180

gate

Overview
Operator for residential rolling gates designed for quick, cost-effective installation and reliable daily use.

Model summary
RO-MATIC RS180 (reversible) for rolling gates with 60 mm shaft and 220 mm spring holder. Suitable for rolling gates up to 180 kg. Electrical brake available as an accessory.

Features

• Mechanical limit stop adjustment
• Designed specifically for residential rolling gates
• Optional electrical brake for enhanced safety/control

Control unit
M230S electronic control unit with built-in receiver, compatible with Aprimatic 433.92 MHz remote controls; straightforward installation and commissioning. Connectable to control and safety devices (maximum accessory absorption: 300 mA). Provides 4 control modes and configurable pause/operation times. Outdoor enclosures for recessed or surface mounting are available.

Product code
43364/003-004

Technical data

• Power supply: 230 V
• Absorbed current: 3.1 A
• Absorbed power: 650 W
• Nominal torque: 180 Nm (170 Nm in EB version)
• Max. lifting force: 180 kg
• REV/I°: 10 n
• Capacitor: 22 μF
• Operating temperature: -20° to +85° C
• Rolling gate max. height: 6 m
• Protection degree: IP30
