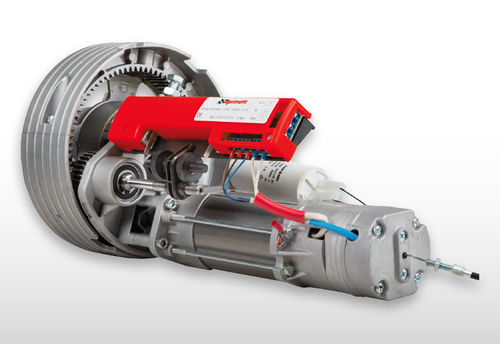

Roller shutter blind actuator RO-MATIC RS140

homeflush-mountedwall-mounted

Product overview
Operator for rolling gates for residential use.

Model description
RO-MATIC RS140 (reversible) for rolling gates with 48 mm pole and 200 mm spring holder is a cost-effective solution for quick and easy installation of rolling gates up to 140 kg. An electrical brake is available as accessory.

Key features

• Reversible operator designed for residential rolling gates
• Compatible with 48 mm pole and 200 mm spring holder
• Electrical brake available as an accessory
• Mechanical limit stop adjustment

Control unit – M230S
M230S is an electronic control unit with built-in receiver, compatible with all Aprimatic 433.92 MHz remote controls, easy to install and put in service. It can be connected to control and safety devices (max. accessory absorption: 300 mA) and is equipped with 4 control modes and configuration of pause/operation times. Outdoor strongboxes for recessed or wall installation available.

Technical data
POWER SUPPLY: 230 V
ABSORBED CURRENT: 2.5 A
ABSORBED POWER: 520 W
NOMINAL TORQUE: 140 Nm / 130 Nm (vers. EB)
MAX. LIFTING FORCE: 140 kg
REV/I°: 10 n
CAPACITOR: 18 μF
OPERATING TEMPERATURE: -20° +85° C
ROLLING GATE MAX. HEIGHT: 6 m
PROTECTION DEGREE: IP30

Technical specifications

• Power supply: 230 V
• Absorbed current: 2.5 A
• Absorbed power: 520 W
• Nominal torque: 140 Nm (130 Nm version EB)
• Max lifting force: 140 kg
• Revolutions / I°: 10 n
• Capacitor: 18 μF
• Operating temperature: -20° to +85° C
• Max rolling gate height: 6 m
• Protection degree: IP30
