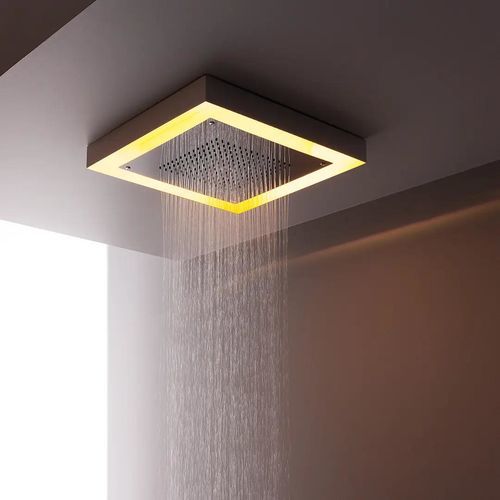

Surface-mounted shower head SF129 D

recessed ceilingsquarerain

Product overview

• Concealed ceiling shower head for recessed installation in a false ceiling or surface-mounted to the ceiling
• Rain flow operation with 1/2" water inlet
• Square design, 520 x 520 mm

Key features

• RGB LED lighting (control key required for ON/OFF; control unit must be installed outside the shower cabin)
• Low-voltage transformers (12V)
• Inspectionable cartridge with Aqua Ring water distribution technology
• Anti Drop system with vacuum effect
• Anti-limestone feature
• External box finish always matt white

Finishes & collection

• Collection: Modula
• Available finishes: 02Q - Mirror Steel; 03Q - Brushed Steel; 04Q - Matt White RAL 9016; 05Q - Matt Black RAL 9005; 17Q - PVD Brushed Copper Bronze; 29Q - PVD Mirror Copper Bronze; 31Q - PVD Mirror Gun Metal; 35Q - PVD Shiny Champagne; 52Q - PVD Brushed Champagne; 59Q - PVD Brushed Gun Metal; 62Q - PVD Brushed Bronze

Technical specifications

• SKU: SF129 D
• Series: Modula
• Dimensions: 520 x 520 mm
• Water inlet: 1/2"
• Operation: Rain flow
• Lighting: RGB LED (control key required for ON/OFF)
• Power: Low-voltage transformers 12V
• Compatibility: Must be matched with a mixer with 1 outlet
• External box finish: Always matt white
• Material: Stainless steel 304L
• Cartridge: Inspectionable cartridge with Aqua Ring water distribution technology
• Anti-drop: Anti Drop system with vacuum effect
• Anti-limescale: Anti-limestone feature

Installation & compatibility

• Concealed part: Art. AC047 D
• Requires a mixer with 1 outlet
• Installation options: recessed in a false ceiling or applied to the ceiling

Notes

Control key for light ON/OFF is required and must be installed outside the shower cabin.
