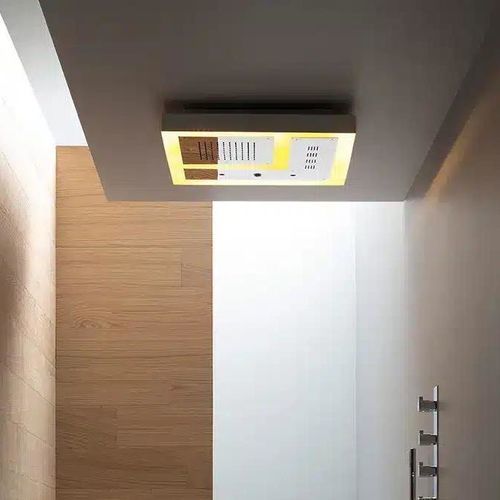

Surface-mounted shower head SF133 D

recessed ceilingsquarerain

Product name
Recessed ceiling shower head SF133 D 620×620 mm

Features

• 3 jets: rain / 3 water column / energy rain
• 1/2" water inlet
• RGB LED lighting (control key required for ON/OFF)
• Control key for light must be installed outside the shower cabin
• Low-voltage power supply: 12V transformer
• Requires mixer with 3 outlets
• External installation box finished matt white
• Material: Stainless steel 304L
• Inspectionable cartridge with Aqua Ring water distribution, Anti Drop (vacuum-effect anti-drop) and Anti-limestone features

Notes
Concealed part: Art. AC046 D
Installation: can be recessed in a false ceiling or surface-mounted to the ceiling. Electrical components (control key, transformer) must be installed outside the shower cabin.

Table - Product attributes
Collection
Modula

Finishes

• 02Q - Mirror Steel
• 03Q - Brushed Steel
• 04Q - Matt White RAL 9016
• 05Q - Matt Black RAL 9005
• 17Q - PVD Brushed Copper Bronze
• 29Q - PVD Mirror Copper Bronze
• 31Q - PVD Mirror Gun Metal
• 35Q - PVD Shiny Champagne
• 52Q - PVD Brushed Champagne
• 59Q - PVD Brushed Gun Metal
• 62Q - PVD Brushed Bronze

Technical specifications

• Collection: Modula
• Article code / SKU: SF133 D
• Dimensions: 620×620 mm
• Jets: 3 (rain / 3 water column / energy rain)
• Water inlet: 1/2"
• Lighting: RGB LED (control key required for ON/OFF)
• LED power supply: Low-voltage transformer 12V
• Installation: recessed in false ceiling or surface-mounted to ceiling; control key and transformer installed outside shower cabin
• Required matching: mixer with 3 outlets
• External box finish: always matt white
• Material: Stainless steel 304L
• Cartridge: Inspectionable cartridge with Aqua Ring distribution, Anti Drop system (vacuum effect) and anti-limestone treatment
• Concealed part: Art. AC046 D
