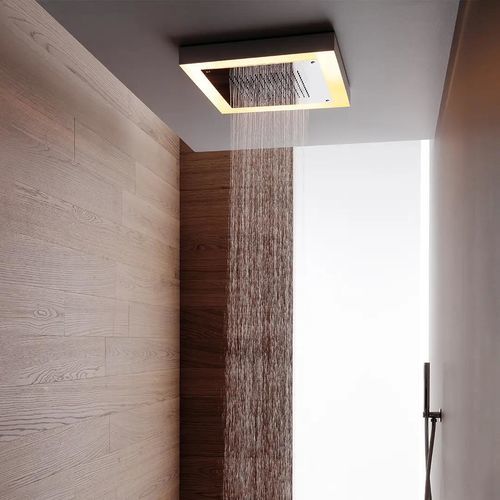

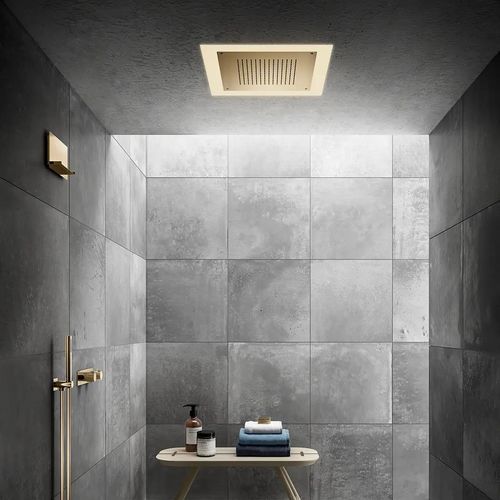

Surface-mounted shower head SF129 B

recessed ceilingceiling-mountedsquare

Product overview

• Rain spray pattern for overhead coverage
• 1/2” water inlet
• RGB LED lighting with remote-control switch
• Low-voltage transformers (12V)
• Requires a mixer/diverter with a single outlet
• External installation box finished in matt white
• 304L stainless steel construction
• Serviceable cartridge with Aqua Ring distribution technology
• Anti Drop system (vacuum-effect) and anti-limescale features

Collection
Modula

Finishes

• 02Q - Mirror Steel
• 03Q - Brushed Steel
• 04Q - Matt White RAL 9016
• 05Q - Matt Black RAL 9005
• 17Q - PVD Brushed Copper Bronze
• 29Q - PVD Mirror Copper Bronze
• 31Q - PVD Mirror Gun Metal
• 35Q - PVD Shiny Champagne
• 52Q - PVD Brushed Champagne
• 59Q - PVD Brushed Gun Metal
• 62Q - PVD Brushed Bronze

Notes
Concealed part: Art. AC047 B. NOTE: installation can be recessed into a false ceiling or surface-mounted to the ceiling.

Technical specifications

• Type: Rain ceiling shower head
• Dimensions: 520 x 520 mm
• Water inlet: 1/2”
• Lighting: RGB LED with remote-control switch
• Transformer: Low-voltage transformers (12V)
• Requirement: Must be paired with a mixer/diverter with one outlet
• External box: Always matt white
• Material: 304L stainless steel
• Cartridge: Serviceable cartridge with Aqua Ring distribution technology
• Features: Anti Drop system (vacuum effect) and anti-limescale
• Collection: Modula
• Concealed part: Art. AC047 B
