Fan with motorized opening FRB boxcommercialindoor
Add to favorites
Compare this product
Characteristics
- Technology
- box
- Sector
- commercial
- Location
- indoor
- Material
- galvanised steel
- Color
- gray
- Other characteristics
- with motorized opening
- Height
965 mm, 1,165 mm, 1,415 mm
(38 in, 46 in, 56 in)- Width
955 mm, 1,205 mm, 1,495 mm, 1,805 mm
(38 in, 47 in, 59 in, 71 in)
Description

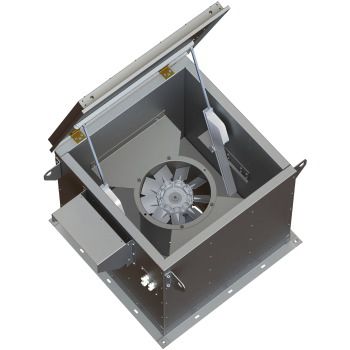

The FRB is a plenum box with motorized opening working in vertical flow. A coupling sleeve is integrated into the suction to be connected to the ductwork if necessary Fan diameters are available from 400 to 1250mm with drives up to 225 frame size.
TEMPERATURE
EN12101-3 certified for operation:
400°C/2h
300°C/2h
200°C/2h
CONSTRUCTION
The casing is made of pre-galvanised Z275 steel. The FRB is suitable for snowy, windy or sandy environments.
Mechanical characteristics:
Certified for 10,000 opening and closing cycles
Wind resistance WL1500 and weight resistance SL500
