Acoustic fan PAF boxcommercialindoor
Add to favorites
Compare this product
Characteristics
- Technology
- box
- Sector
- commercial
- Location
- indoor
- Material
- galvanised steel
- Color
- black, gray
- Other characteristics
- acoustic
- Weight
Min.: 110 kg
(242.51 lb)Max.: 550 kg
(1,212.54 lb)- Height
Min.: 90 mm
(4 in)Max.: 255 mm
(10 in)- Width
920 mm, 1,025 mm, 1,235 mm, 1,675 mm
(36 in, 40 in, 49 in, 66 in)- Length
695 mm, 830 mm, 995 mm, 1,095 mm
(27 in, 33 in, 39 in, 43 in)
Description

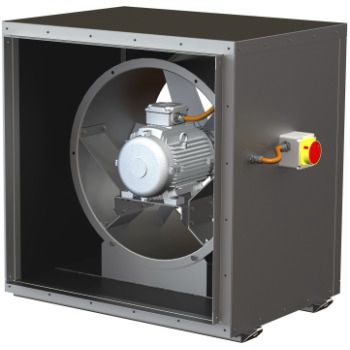

The PAF is a horizontal soundproofed plenum box. It can be used with or without suction and/or discharge connection. The range is available for fans from 400 to 1250mm diameter with drives up to 225 frame size.
TEMPERATURE
EN12101-3 certified for operation:
400°C/2h
300°C/2h
200°C/2h
CONSTRUCTION
These boxes are made of pre-galvanised steel sheet. The interior is insulated with rock wool covered with a very durable black fibreglass cloth.
Available as an option:
Paint finish
Stainless steel
