Axial fan AXUS 2 POLES helicalcommercialindoor
Add to favorites
Compare this product
Characteristics
- Technology
- axial, helical
- Sector
- commercial
- Location
- indoor
- Material
- steel, stainless steel
- Color
- gray
- Other characteristics
- for high temperatures
- Weight
Max.: 355 kg
(782.64 lb)Min.: 275 kg
(606.27 lb)- Width
630 mm, 710 mm, 800 mm
(25 in, 28 in, 31 in)- Length
Max.: 865 mm
(34 in)Min.: 675 mm
(27 in)- Power
Max.: 37 W
Min.: 22 W
Description

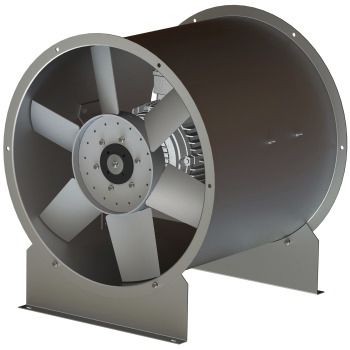

Axial fan with a long casing with length varying from 675mm to 865mm depending on the size. The steel impeller is driven directly by the motor shaft to deliver the best possible performance.
The B3 motor (foot mounted) is installed in the air stream with a support system for efficient operation. This fan has mounting flanges for easy connection to the air duct system.
An inspection hatch is integrated in the upper part of the casing to enable easy electrical connection of the motor and to facilitate maintenance.
Catalogs
No catalogs are available for this product.
See all of AREM‘s catalogsOther AREM products
AXUS RANGE
