Smoke extractor fan AXUS 4 POLES

axialhelicalcommercial

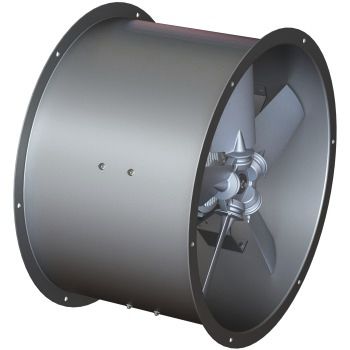

Axial fan with a long or short casing with length varying from 254mm to 1010mm depending on the size. Our aluminium impellers are driven directly by the motor shaft to deliver the best possible performance. The B3 motor (foot mounted) is installed in the air stream with a support system for efficient operation. This fan has mounting flanges for easy connection to the air duct system. In the long casing version, an inspection hatch is integrated in the upper part to enable easy electrical connection of the motor and to facilitate maintenance. APPLICATION Air extraction at high temperatures or in high fire risk environments. Car parks and high-rise buildings Hospitals Stations and airports Superstores Collective kitchens Workshops More generally, establishments open to the public or employees. TEMPERATURE EN12101-3 certified for operation: 400°C/2h 300°C/2h 200°C/2h CONSTRUCTION Our fans are made in our factory from pre-galvanised sheet steel as standard. In order to meet your particular needs, we manufacture on request: Stainless steel 304L or 316L Hot galvanised steel Surface treatment with epoxy paint
