Axial fan BX

helicalcommercialindustrial

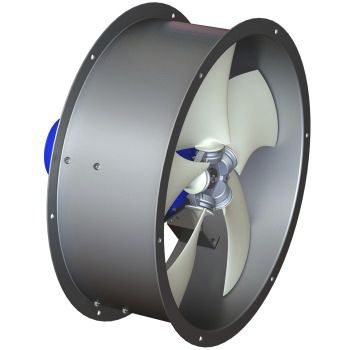

Axial fan with a short casing with length varying from 235mm to 800mm depending on the size. Our aluminium or plastic impellers are driven directly by the motor shaft to deliver the best possible performance. The B3 motor (foot mounted) is installed in the air stream with a support system for efficient operation. This fan has mounting flanges for easy connection to the air duct system. APPLICATION Ambient air extraction or insufflation: Car parks and high-rise buildings Hospitals Stations and airports Superstores Collective kitchens Workshops More generally, establishments open to the public or employees. TEMPERATURE Standard operating temperatures are from -20°C to +40°C with a class F motor. On request, fans with class H motors can operate in environments up to +130°C. CONSTRUCTION Our fans are made in our factory from pre-galvanised sheet steel as standard. In order to meet your particular needs, we manufacture on request: Stainless steel 304L or 316L Hot galvanised steel Surface treatment with epoxy paint Solutions equipped with EC motors are available with direct drive or power transmission via belt pulley. Please consult us.
