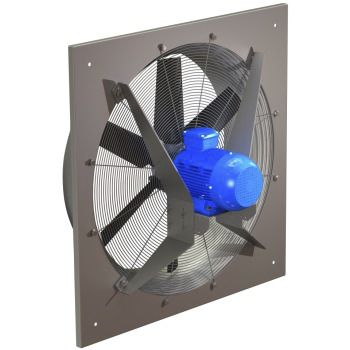

Helical fan DA wall-mountindustrialfor commercial buildings
Add to favorites
Compare this product
Characteristics
- Technology
- helical
- Installation
- wall-mount
- Sector
- industrial, for commercial buildings
- Location
- indoor
- Material
- galvanised steel, aluminum, plastic
- Color
- gray
- Other characteristics
- for high temperatures
- Height
Max.: 900 mm
(35 in)Min.: 250 mm
(10 in)- Width
150 mm, 170 mm, 210 mm
(6 in, 7 in, 8 in)- Length
Max.: 1,150 mm
(45 in)Min.: 370 mm
(15 in)
Description
The DA fan is designed to be installed in a vertical position. It incorporates a square base with integrated Venturi for easy installation and fixing in industrial, agricultural or service sector premises. Plastic or aluminium impellers are available to cover your widest applications.
TEMPERATURE
Standard operating mode -20°C à +40°C.
Option available for low or high temperature -40°C à +80°C.
CONSTRUCTION
The casing is made of pre-galvanised Z275 steel with electro-galvanised protective grille included on the motor side.
Stainless steel, epoxy paint treatment options etc. are available on request.
Catalogs
DA EC
5 Pages
THE VENTILATION PERFORMANCE
202 Pages
