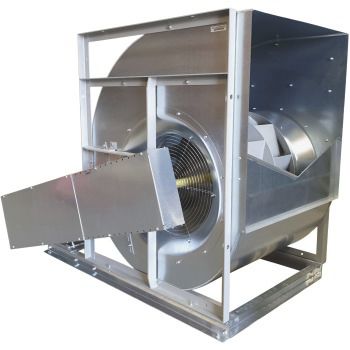

Centrifugal fan RDH commercialindoorgalvanised steel
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Sector
- commercial
- Location
- indoor
- Material
- galvanised steel, steel
- Color
- gray
- Other characteristics
- with air purifier
- Height
Max.: 1,810 mm
(71 in)Min.: 346 mm
(14 in)- Width
Max.: 1,367 mm
(54 in)Min.: 269 mm
(11 in)- Length
Max.: 1,451 mm
(57 in)Min.: 290 mm
(11 in)
Description
The RHD is a centrifugal fan with backward-inclined blades. For high flow applications at medium pressures, it is ideally suited to transporting clean or slightly dusty air.
TEMPERATURE
Ambient environment:
-20°C à +40°C
CONSTRUCTION
The RHD is made of pre-galvanised steel, and is reinforced by the painted steel frames.
The belt pulley transmission enables a wide range of operating point selection.
Option:
Epoxy paint
Low temperature operation
Chassis mounted
