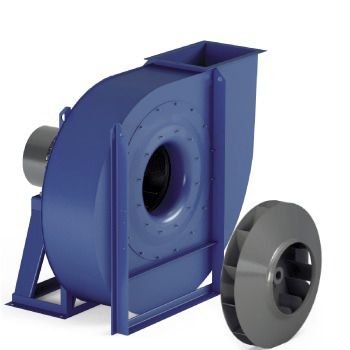

Extractor fan G SERIES

commercialindustrialindoor

Our range extends from 400mm diameter to 1250mm diameter, from a few hundred m3/h to 140000 m3/h, with 2, 4 and 6 pole motors, 1 or 2 speeds as well as the possibility of use in geographical areas with a specific electrical network, 60 Hz. Other engine speeds are available on request. APPLICATION Air extraction or insufflation: Factory Production workshops Chemical industries Off-shore areas Coastal territories More generally, industrial establishments open to the public or employees. TEMPERATURE Ambient environment: -20°C to +40°C with class F motor For continuous operation up to 130°C, we can supply class H motors on request. CONSTRUCTION The fans in this series are made of painted steel. Depending on size, the fan casing can be reinforced Fixing holes are available for ease of installation. On request, stainless steel or polyester coated constructions can be made. The possible directions are in RD or LG according to your needs in 45° steps
