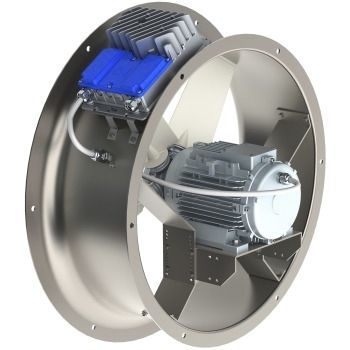

Helical fan AXUS EC DEPORTED

commercialindoorgalvanised steel

Our standard axial solutions with remote EC motor covers diameters from 560 to 1250mm. Depending on the size, flow rates up to 73000m3/h or static pressures of up to 800Pa can be achieved. TEMPERATURE Ambient environment: -40°C à +45°C ELECTRIC Grid frequency 50/60Hz Voltage 400V/440V Steering via 0-10V signal Modbus RS485 2 Inputs (with quick connect terminal) 1 Output (with quick connect terminal) CONSTRUCTION Our AXUS EC range is made of pre-galvanised steel in standard construction. Options in 304L or 316L stainless steel, hot dipped galvanised and paint treated are available on request. The drive (electronic controller) is remote on the casing, only the motor works in the airflow. On request, we can move the drive to a technical room.
