Helical fan DA EC wall-mountindustrialindoor
Add to favorites
Compare this product
Characteristics
- Technology
- helical
- Installation
- wall-mount
- Sector
- industrial
- Location
- indoor
- Material
- galvanised steel
- Color
- gray
- Weight
Max.: 35 kg
(77.16 lb)Min.: 14 kg
(30.86 lb)- Height
Max.: 700 mm
(28 in)Min.: 370 mm
(15 in)- Width
Max.: 375 mm
(15 in)Min.: 345 mm
(14 in)- Length
Max.: 700 mm
(28 in)Min.: 370 mm
(15 in)
Description

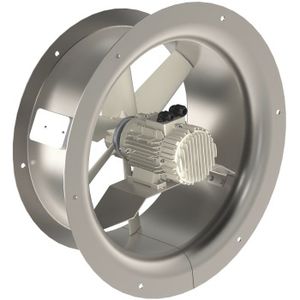

The DA EC is an electronically commutated (EC) axial fan. It is designed to extract air at ambient temperature. Easy to install, it is ideally suited to the ventilation of industrial and service industry premises. Its permanent magnet motors with integrated electronic controller enables greater flexibility of use to meet varying needs/
TEMPERATURE
Ambient environment:
-20°C à +45°C
ELECTRIC
Grid frequency 50/60Hz
Voltage 230V/277V
Steering with potentiometer or 0-10V signal
Modbus RS485
Junction box for quick connection
CONSTRUCTION
The DA EC is made of pre-galvanised steel, and includes as standard a protective grille mounted on the suction side.
Available in 6 sizes and 11 models, the range covers 250 to 500mm with flow rates up to 13,500m3/h.
Catalogs
DA EC
5 Pages
THE VENTILATION PERFORMANCE
202 Pages
