Mineral fiber suspended ceiling LEDGES®

panelfor soffitindoor

Overview

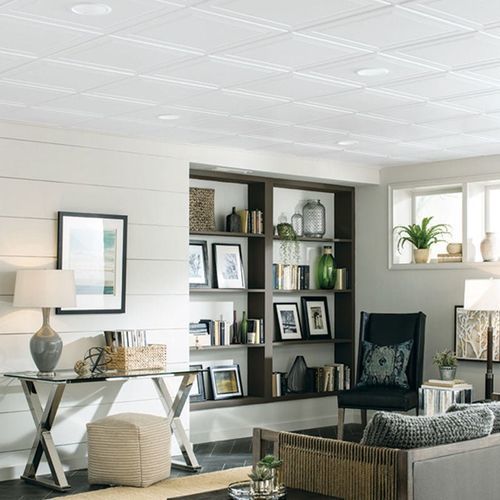

Armstrong Ledges® ceiling tiles provide a dimensional, sculptured coffered appearance designed for exposed tee suspension systems. Available in single- and four-panel patterns, Ledges tiles deliver sound-blocking performance for commercial and residential applications.

Design & options

• Patterns: Single-pane, Four-pane
• Edge profiles / grid compatibility: Flush Tegular 15/16 in (option: Flush Tegular 9/16 in)
• Tile sizes: 24 in x 24 in x 3/4 in (610 x 610 x 19 mm) and 24 in x 24 in x 5/8 in (610 x 610 x 16 mm)
• Finish / appearance: dimensional, sculptured coffered look (multiple colors and finishes available)

Package & coverage

• Pack quantity: 12 tiles per carton
• Coverage per carton: 48 sq ft (approx. 4.46 m2)
• Typical carton weight: approx. 49 lbs (approx. 22.2 kg)

Materials & construction

• Material: Mineral fiber ceiling panels
• Manufacturer / brand: Armstrong (Kanopi by Armstrong retail platform)
• Made in USA (manufacturer marking displayed)

Performance & ratings

• Sound Blocking (Ceiling Attenuation Class, CAC): reported value 35
• Sound Absorption (NRC): reported value 0
• Fire rating: Class A (flame spread ≤ 25; smoke developed ≤ 50)

Compatibility & installation

• Compatible with PRELUDE XL 15/16 in exposed tee suspension system
• Installation resources: video guides and downloadable installation instructions provided by the manufacturer

Downloads & resources (available)

• Technical/data sheet for Ledges
• Specification documents and CAD details
• General installation instructions for suspended/drop ceilings
• Cleaning and disinfecting guidelines
• SDS (mineral fiber) and warranty documents

Notes

• Available in residential and commercial finish options; 6 in x 6 in sample tiles offered for appearance testing
• Cartons can be bulky and heavy; deliveries may require handling space and equipment

Technical specifications

• Commercial name: Ledges®
• Item / SKU: BP8011 (spec sheet reference: 8011)
• Edge profile & grid size: Flush Tegular 15/16 in (option: Flush Tegular 9/16 in)
• Product dimensions (example variant): 24 in x 24 in x 3/4 in (610 x 610 x 19 mm); alternative thickness 24 in x 24 in x 5/8 in (610 x 610 x 16 mm)
• Package quantity: 12 tiles per carton
• Package coverage: 48 sq ft per carton (approx. 4.46 m2)
• Weight: approx. 49 lbs per carton (approx. 22.2 kg)
• Material: Mineral fiber
• Sound Blocking (CAC): approx. 35
• Sound Absorption (NRC): approx. 0
• Fire Rating: Class A
• Manufactured / branded by: Armstrong
