Mineral fiber suspended ceiling SINGLE RAISED

panelfor living roomsindoor

Product overview

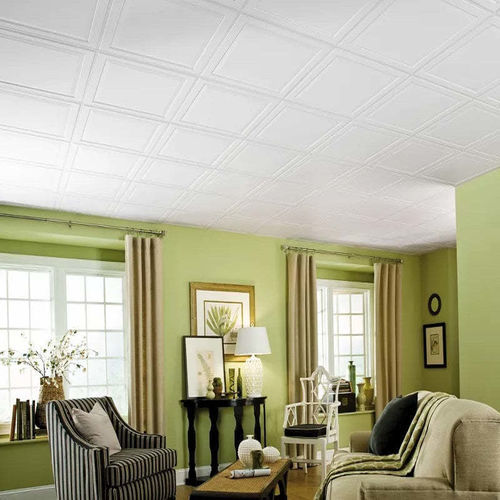

The classic coffered look is achieved with the 24 x 24 in Single Raised Panel ceiling tile, delivering a traditional architectural aesthetic suitable for commercial interiors and renovation projects. Item 1205 fits Prelude 15/16 in suspension systems or the QuickHang installation kit; item 1210 fits Suprafine 9/16 in systems.

Packaging & pricing

• Unit: carton
• Package quantity: 6 tiles / carton
• Covers: 24 sq. ft. per carton (6 tiles)
• Price (per carton): $78.38
• Price per sq. ft.: $3.27 / sq. ft.

Performance

• Sound Absorption (NRC): 0.0 (of 1)
• Sound Blocking (CAC): 30 (of 50)
• Fire Rating: Class A (flame spread ≤ 25; smoke-developed ≤ 50)
• Standard sag and humidity resistance
• Cleanable (light washing with mild soap; follow cleaning guidelines)
• Standard mold and mildew resistance

Material & dimensions

• Denomination: Single Raised Panel
• Item (example variant shown): 1210
• Edge profile & grid size (examples/options): Flush Tegular 9/16 (also available Flush Tegular 15/16)
• Product dimensions (typical): 24 x 24 in x 3/4 in (other variant: 24 x 24 in x 5/8 in)
• Material: Mineral Fiber
• Weight: 38 lbs per carton

Installation notes
Item 1205 installs in Prelude 15/16 in suspended ceiling systems or with the QuickHang installation kit. Item 1210 installs in Suprafine 9/16 in suspended ceiling systems. Follow manufacturer installation instructions and provided installation PDFs for project-specific guidance.

Documents available
Installation instructions, cleaning guidelines, SDS (Mineral Fiber), warranty and sustainability (VOC) documents are available in the product downloads.

Technical specifications

• Item: 1210
• Commercial name: Single Raised Panel
• Edge profile & grid size: Flush Tegular 9/16 (option: Flush Tegular 15/16)
• Product dimensions: 24 x 24 in x 3/4 in (variant: 24 x 24 in x 5/8 in)
• Package quantity: 6 tiles / carton
• Covers: 24 sq. ft. per carton
• Weight: 38 lbs per carton
• Material: Mineral Fiber
• Sound Absorption (NRC): 0.0 (of 1)
• Sound Blocking (CAC): 30 (of 50)
• Fire Rating: Class A (flame spread ≤ 25; smoke-developed ≤ 50)
• Characteristics: Standard sag/humidity resistance; Cleanable; Standard mold/mildew resistance
