Polypropylene raised floor pedestal BABEL KIT STANDARD

self-levelingnoise-reductionadjustable

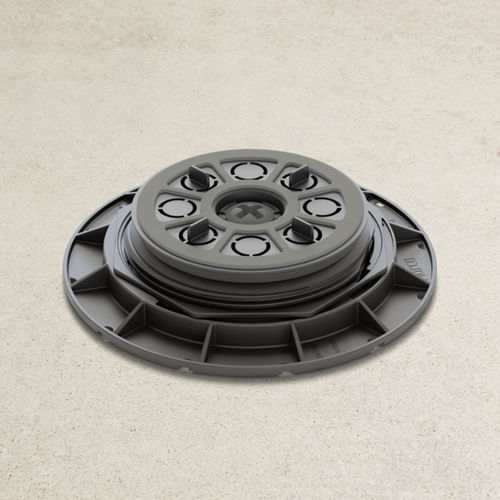

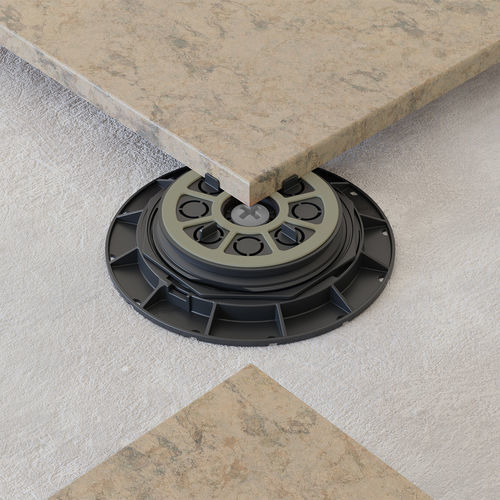

Product overview The Babel Standard Kit is a two-part support solution for raised access floors, comprising the head and the Babel base. Height is adjustable from 25 mm to 45 mm. The Babel head incorporates the SmartHead self-levelling system, which corrects unevenness up to 5%. AcousticGrip is an absorbent material integrated in the head to prevent movement between parts and to minimise sound transfer to the subfloor. The head is available with 2 mm and 4 mm joints. The Babel base has a diameter of 20 mm and includes water drainage outlets.

• ApplicationsSupports raised access and technical floors in commercial, institutional and exhibition spaces.
• Suitable for office areas, showrooms and other environments requiring removable floor panels and cable routing.

• Sales formatsThe standard kit consists of two separate parts: base and head; supplied in separate boxes and requires assembly on site.
• Packaging: 24 Babel bases per box.
• Packaging: 24 Babel heads per box.

• Technical specificationsHeight adjustable range: 25 mm – 45 mm
• SmartHead self-levelling: corrects unevenness up to 5%
• AcousticGrip: absorbent material that prevents movement and reduces sound transfer
• Head joint options: 2 mm and 4 mm
• Babel base diameter: 20 mm
• Babel base: water drainage outlets included
• Kit composition: separate base and head boxes; assembly required
• Packaging: 24 bases per box; 24 heads per box
