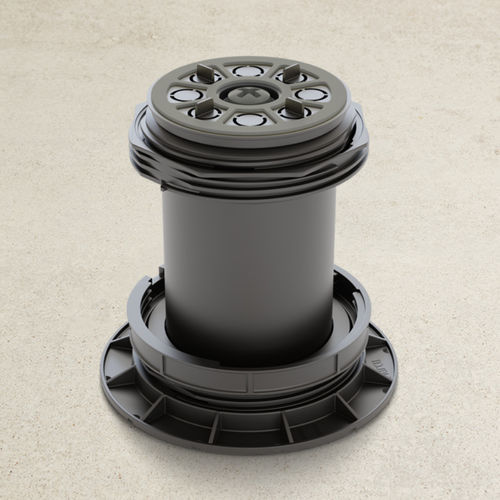

Polypropylene raised floor pedestal BABEL GROWTH TUBE KIT

indooroutdoorfor tile

Product overview
The growth tube kit is composed of two tube adapters joined by a tube cut to the customer-specified length. It functions as an extension for the Standard Kit in raised access floor installations, allowing the system to reach greater heights while optimising cost. The tube is manufactured to the measurements requested by the customer and preserves the Standard Kit's height adjustment and slope-correction capabilities. Correct operation requires the growth tube kit to be used with the C30 ring as the base; the C30 ring is a required component to ensure proper functioning and to increase height flexibility of the Standard Kit.

Available components / items shown

• Tube adapters
• Growth tube (cut to size)
• Adapters + Tube
• Standard Kit + C30 Ring + Growth Tube Kit

Sales formats

• Complete boxes: 48 tube adapters per box
• Growth tube: customised according to customer-specified measurements

Characteristics / Technical specifications

• Composition: union of two adapters and a tube cut to size
• Main function: height extension of the Standard Kit to reach greater finished heights
• Adjustments: preserves height adjustment and slope correction
• Compatibility: requires the C30 ring as base for correct functioning
• Customization: tube length manufactured to customer-specified dimensions
• Sales packaging: tube adapters supplied in boxes of 48 units
