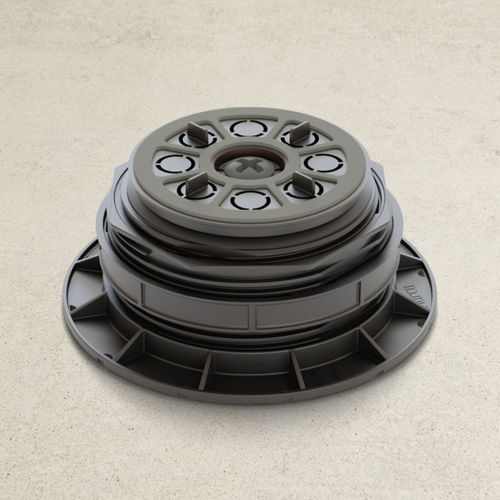

Polypropylene raised floor pedestal RING C30

outdoorindoorfixed height

Product overview
The C30 ring is an accessory for the Babel raised floor system designed to increase the maximum installation height of the Standard Kit. Installed alone or combined with the C60 ring, it expands the available height range and is required when using the growth tube kit. Maximum achievable height with the C30 ring is 77 mm, representing a 32 mm increase over the standard maximum.

Applications

• Adjusting installation height of Babel Standard Kit in technical raised-floor installations
• Used where an intermediate height increment is needed between Standard Kit configurations

Sales formats

• Complete boxes: 24 C30 rings per box

Images / Media

• Main product image plus supplementary images showing Ring C30 and Standard Kit + C30 Ring

Technical specifications

• Product name: Ring C30
• System: Babel raised floor system
• Function: Increases maximum installation height of Standard Kit
• Maximum height with C30: 77 mm
• Height increase over standard: 32 mm
• Usage: Can be used alone or combined with C60 ring
• Compatibility: Required for use with growth tube kit
• Packaging: 24 rings per complete box
• Image captions: "Ring C30", "Standard Kit + C30 Ring"
