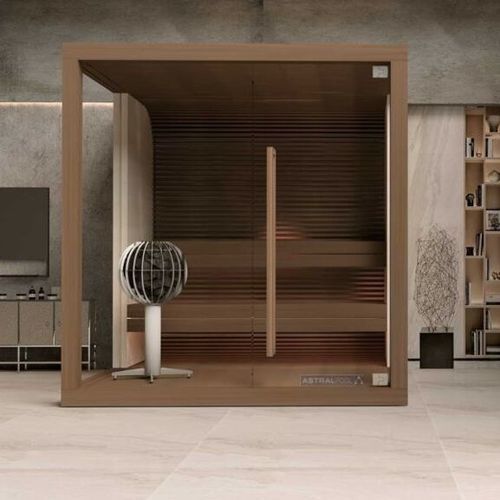

Finnish sauna BELLAcommercialhometempered glass
Add to favorites
Compare this product
Characteristics
- Type
- Finnish
- Market
- commercial, home
- Material
- tempered glass, alder, solid wood, plywood, aspen, hemlock
- Location
- indoor
- Other characteristics
- prefab
- Surface area
Max.: 6 m²
(69 ft²)Min.: 3 m²
(35 ft²)
Description
Overview
Main features
Models / Codes
Technical specifications
Notes
- Sauna cabin suitable for residential and light-commercial installations.
- Modular construction with Hemlock vertical plywood panels, 57 mm thickness.
- Full glass front and frameless glass door for visual access.
Main features
- Tongue-and-groove panel system for optimal sealing; temperature resistance up to 150 °C.
- Thermal insulation with mineral wool; aluminium foil moisture/vapor barrier.
- Floor frame in impregnated solid wood; floor grill in Thermo Aspen / Thermo Alder.
- Benches in Thermo Aspen with low thermal conductivity; bench load capacity approx. 200 kg/m.
- LED sauna lighting along benches, 12 V, warm white.
- Heater power varies by model; control via touch-screen panel (series).
- Electrical wiring: silicone cables 400 V III + N + protective earth; air ventilation provided.
Models / Codes
- 72916 — Bella Sauna 180 x 180 x 210 cm — 7 kW — 230/400 V 3~
- 60789 — Bella Sauna 210 x 210 x 210 cm — check code for heater rating
- 72917 — Bella Sauna 230 x 180 x 210 cm — 7 kW — 230/400 V 3~
- 72918 — Bella Sauna 230 x 230 x 210 cm — 11 kW — 230/400 V 3~
- 72919 — Bella Sauna 280 x 230 x 210 cm — 11 kW — 230/400 V 3~
Technical specifications
- Panel material: Hemlock plywood, vertical panels, 57 mm thickness.
- Front glass: 8 mm tempered transparent glass with solid wooden frame.
- Door: 8 mm tempered transparent glass, frameless; wooden handle with square profile.
- Insulation: mineral wool thermal insulation; aluminium foil moisture barrier.
- Floor frame: impregnated solid wood; floor grill: Thermo Aspen / Thermo Alder.
- Benches: Thermo Aspen, low thermal conductivity, load capacity approx. 200 kg/m.
- Lighting: LED 12 V along benches, warm white.
- Control: touch-screen panel (series).
- Wiring: silicone cabling 400 V; N conductor and protective earth provided.
- Ventilation: air ventilation included.
Notes
- The front wall is supplied visible by default. Other walls can be finished/visible on request (extra charge).
- Heater power and exact technical data depend on selected model/code — verify before ordering.
