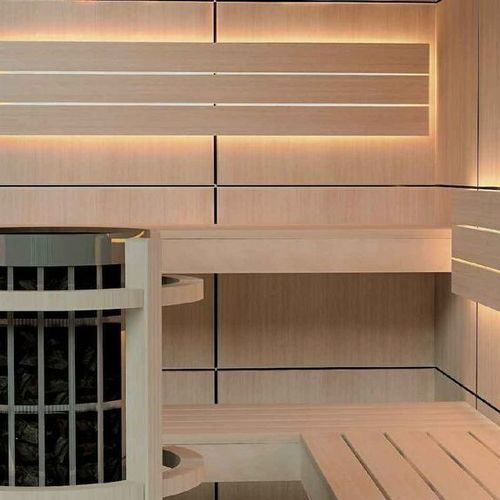

Finnish sauna LOBOS

electrichomefor wellness center

Overview

• Clear, minimalist design adapted to architectural projects.
• High‑quality Hemlock and Abachi wood components.
• Full glazed front for integration in wellness areas.

Features

• Construction with Hemlock plywood vertical panels, 66 mm thickness.
• Tongue-and-groove system for optimal sealing; temperature resistance up to 150 °C.
• Internal thermal insulation with mineral wool and moisture barrier in aluminium foil.
• Floor frame in impregnated solid wood and Abachi floor grill.
• Full front panel: 8 mm tempered transparent glass with solid wooden frame.
• Door: frameless 8 mm tempered glass with square-profile wooden handle.
• Benches in Abachi with low thermal conductivity; load capacity up to 200 kg/m.
• LED lighting along benches and wall shades, 12 V, warm white.
• Heater power: 6 kW (variant-dependent: some models 7 kW or 9 kW per table).
• Control: touch screen series control panel.
• Electrical: silicone wiring 400 V III + N + ground.
• Air ventilation included.
• Standard visibility: front wall and one side visible; other sides visible on request (extra charge).

Table
CODE | Description | Spare Parts
72913 | Lobos Sauna 134 x 254 x 210 7 kW 230 / 400 3~ |
72914 | Lobos Sauna 194 x 194 x 210 7 kW 230 / 400 3~ |
72915 | Lobos Sauna 254 x 254 x 210 9 kW 230 / 400 3~ |

Technical specifications

• Panels: Hemlock plywood vertical panels, 66 mm thickness.
• Sealing: tongue-and-groove system; temperature resistance up to 150 °C.
• Insulation: mineral wool inside; aluminium foil moisture barrier.
• Floor: impregnated solid wood frame; Abachi floor grill.
• Front and door glass: 8 mm tempered transparent glass (front with wooden frame; door frameless).
• Benches: Abachi wood, low thermal conductivity, capacity 200 kg/m.
• Lighting: LED 12 V, warm white along benches and wall shades.
• Heater: nominal 6 kW (see model table for variants 7 kW / 9 kW).
• Control: touch screen series.
• Electrical wiring: silicone 400 V III + N + earth.
• Ventilation: integrated air ventilation.
• Visibility options: front + one side standard; additional visible sides on request (extra charge).
