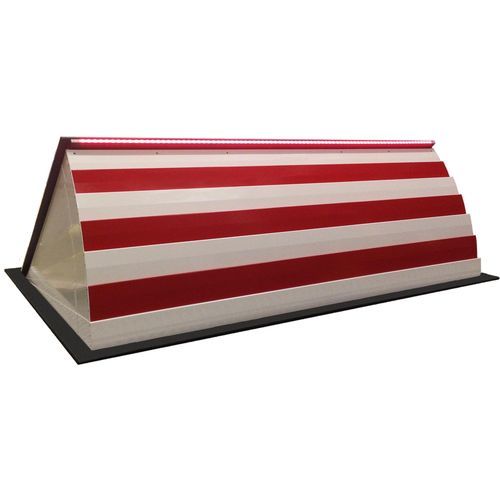

Road blocker road-blocker RSB M50

high-resistancebuilt-in

High-security antiterrorist obstacles (width from 2 to 6 m) The RSB M50 road blocker (or wedge barrier) is a retractable automatic anti-ram device capable of stopping a 7,5T vehicle at a speed of 80km/h (or 3,5T at 112km/h) Technical specifications Crash test certified - PAS68:2013 V/7500(N3)/80/90:0.2/10 Rated in compliance with - IWA 14-1:2013 V/7200(N3C)/80/90 DOS K12 & ASTM M50 Impact resistance - 2.000.000 joules 7,5T at 80km/h 3,5T at 112km/h Obstacle height - 1000 mm Obstacle width - 2/3/4/5/6 m Foundation depth - 500 mm Rising / lowering speed - 7 / 7 sec Enhanced speed available Emergency Fast opening (Rising speed) - 1,5 sec Hours / Days cycles - 300 / 2000 • In case of power failure, the obstacle can be lowered by a manual operation directly on the hydraulic pump. Additional options allow the oostacle to be lowered from a remote location OR to be raised and lowered (manua pump) OR an uninterrupted operation (UPS) • The operation can be signaled by LEDS on the obstacle, a buzzer, traffic lights or a synchronization with a rising barrier. • Finishing: the obstacle is anthracite grey painted covered by a non-slip metal or stainless steel sheet. The metal skirt is red and white. • Activation: The hydraulic pump and the control unit are housed in a cabinet which could be up to 30m remote.
