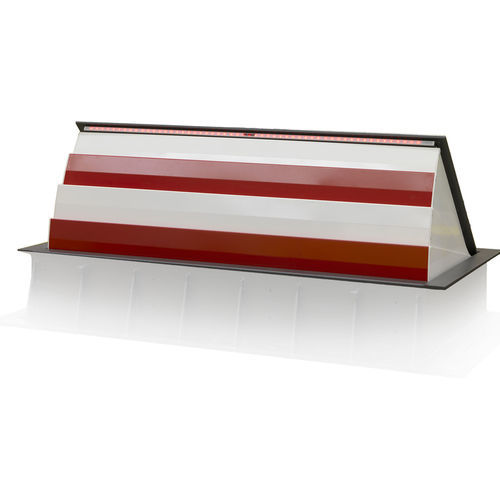

Road blocker road-blocker RSB M30

built-in

High-security antiterrorist obstacles (width from 2 to 6 m) The RSB M30 road blocker (or wedge barrier) is a retractable automatic anti-ram device capable of stopping a 7,5T vehicle at a speed of 48km/h (or 3,5T at 64km/h) Technical specifications Rated in compliance width - PAS68:2013 V/7500(N3)/48/90 IWA 14-1:2013 V/7200(N3C)/48/90 DOS K4 & ASTM M30 Impact resistance - 750.000 joules 7,5T at 48km/h 3,5T at 64km/h Obstacle height - 500 mm Obstacle width - 2/3/4/5/6 m Foundation depth - 500 mm Rising / lowering speed - 5 / 5 sec Enhanced speed available Emergency Fast opening (Rising time) - 1,5 sec Hours / Days cycles - 300 / 2000 • In case of power failure, the obstacle can be lowered by a manual operation directly on the hydraulic pump. Additional options allow the obstacle to be lowered from a remote location OR to be raised and lowered (manual pump) OR an uninterrupted operation (UPS) • The operation can be signaled by LEDS on the obstacle, a buzzer, traffic lights or a synchronization with a rising oarrier. • Finishing: the obstacle is anthracite grey painted covered by a non-slip metal or stainless steel sheet. The metal skirt is red and white. • Activation: The hydraulic pump and the control unit are housed in a cabinet which could be up to 30m remote.
