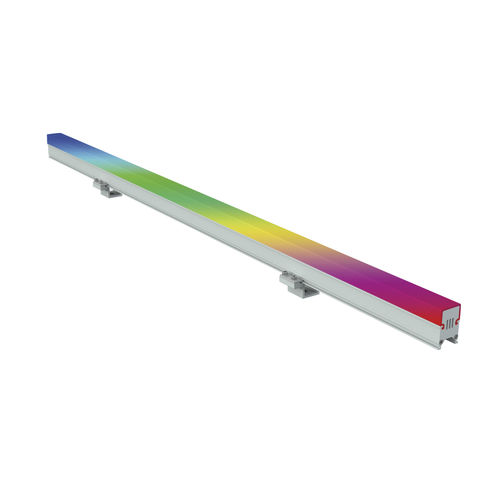

LED strip light BAYLINE PIXEL

IP67polycarbonatealuminium

APPLICATION BAYLINE is a direct view linear LED luminaire designed for decorative lighting including cove and edge lighting applications. With its color changing capability, long linear color changing effects can be created easily. The luminaire is designed for harsh outdoor environment usage. PRODUCT DESCRIPTION Directview made of aluminium extrusion and Polycarbon diffuser IP67 connector Mounting bracket made of aluminium LED chip angle 120°(without lens) Safety class I Input 24V DC Power factor > 90% full load DMX 512 controllable. Colour standard : Mat anodizied Optional RAL codes. Protection class IP67 Impact strenght IK09 Operation temperature -30°C / +60°C Complies with European standards EN 60598 and CE certificate. -- Conformity mark. LAMPS Module connected wattage10W/m Ambient température ta max = 55 °C Number of LEDs @105cm42 LED LED Type3-in-1 SMD RGB Pixel Pitch15cm Pixel Content 6 RGB LEDs @ 1 Pixel ColorDepth16.7 million ControlDMX512 Efficiency Brightness Lumen Viewing Angle 46 Lm/W 70cd/m 464 Lm/Meter 180° Operating Voltage 24 VDC
