APPLICATION

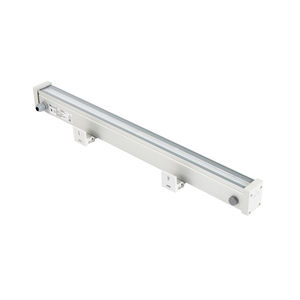

LED high-performance linear lights with120 degree beam light distribution.
PRODUCT DESCRIPTION
Linear lights made of anodized silver aluminium
extruded housing with stainless steel screws
and silicone sealing.
Mounting bracket made of plastic.
LED chip angle 120° (without lens)
Colour standard : Mat anodizied
Constant current
Input 24V - DC Mono Color
Power factor > 90% full load
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Protection class IP65
Operation temperature -25°C / +55°C
Weight: 0,3 kg
Complies with European standards
EN 60598 and CE certificate.
-- Conformity mark.
LAMPS
Module connected wattage 6W
Luminaire connected wattage 10W
Ambient température ta max = 55 °C
NW
Module désignation 15L20230NC-11
Colour température 4000K
Colour rendering index Ra>80
Module luminous flux 835 Im
Luminaire luminous flux 720 Im
WW
Module désignation 15L20230NC-11
Colour température 3000K
Colour rendering index Ra>80
Module luminous flux 812 1m
Luminaire luminous flux 700 Im
Standard colour température 4000K
Also available with 3000K on request.
