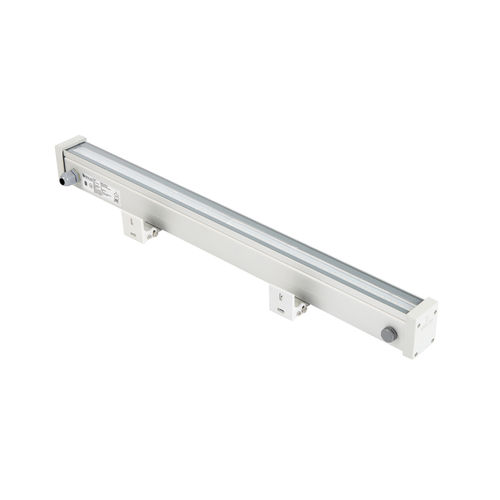

LED strip light ARSEN AC 60IP66polyamidestainless steel
Add to favorites
Compare this product
Characteristics
- Light source
- LED
- Protection class
- IP66
- Material
- polyamide, stainless steel, aluminum
Description
APPLICATION
LED high-performance wallwashers with wide & narrow beam light distribution.
PRODUCT DESCRIPTION
Clear 5mm safety glass
Silicon rubber gasket
Swivel range 30°
Mounting bracket made of plastic.
Lens angle 18°- 25°- 30°x90°- 60°x110°- 90°x110°
Colour standard : Mat anodizied
Optional RAL codes.
LED power supply unit
Input 198 – 264V AC 50 / 60 Hz
Power factor > 90% full load
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Impact strenght IK09
Operation temperature -25°C / +55°C
Wind catching area: 0,03 m²
Weight: 1,2kg
EULUMDAT files available
Complies with European standards
EN 60598 and CE certificate.
