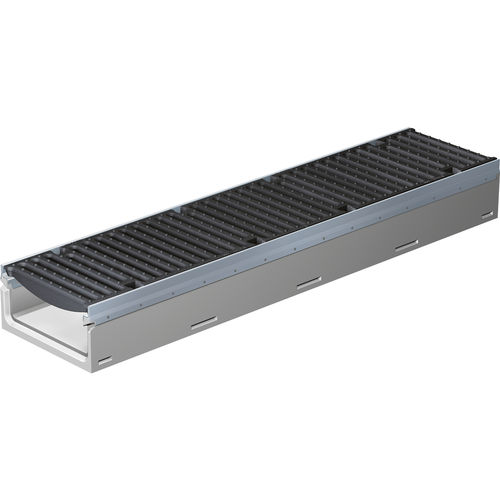

Drainage channel with grating FILCOTEN PRO MINI 200fiber-reinforced concretewith metal gratefor public spaces
Add to favorites
Compare this product
Characteristics
- Configuration
- with grating
- Material
- fiber-reinforced concrete
- *grid material
- with metal grate
- Applications
- for public spaces
- Other characteristics
- leak-proofing
Description
By the installation of the FILCOTEN pro channel body, with massive edges made of galvanized steel or stainless steel, loads up to class E 600 kN are possible - and with a slight component weight.
Mesh grates or cast iron grates are available with quick locking system. Additionally, a vandalism locking device can be used.
The gratings in FILCOTEN tec and pro are fixed by using an innovative clip system in the channel body. An additional anchoring prevents the removal of the grates (anti-vandalism locking device!).
Technical data:
System - FILCOTEN pro mini
length - 1000 mm
overall width - 238 mm
nominal width - 200 mm
slope - without slope
overall height - channel 100 100 mm
channel 200 mm
weight without grating
channel 100 - ca. 19.3 kg
channel - ca. 29.4 kg
