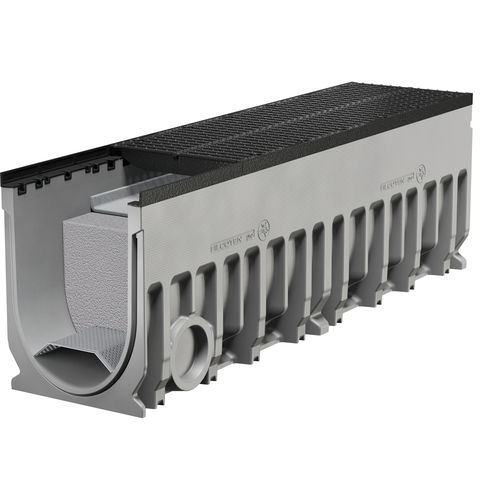

Drainage channel with grating FILCOTEN GREEN 400
slotfiber-reinforced concretewith metal grate

drainage channel with grating
drainage channel with grating
drainage channel with grating
drainage channel with grating
drainage channel with grating
drainage channel with grating
drainage channel with grating
Add to favorites
Compare this product


Characteristics

Configuration
with grating, slot
Material
fiber-reinforced concrete
*grid material
with metal grate
Applications
for public spaces
Other characteristics
leak-proofing

Description

The new FILCOTEN® green has an innovative filter system that impresses with its outstanding cleaning performance. At the same time, the system is easy to install and extremely easy to maintain. All advantages at a glance The Filter Material ViaSorp is tested and certified according to Austrian standard: Ö-Norm B2506-3 Tested with water from origin-classes A, B and c with filter-area relation 1:250 NW 400 channel with 640 mm height and 2 m length – unique size Retention space in the channel for optimized drainage performance Sustainable protection for groundwater and soil Holds back heavy metals, organic substances and sediments Absorbs hydrocarbons like oil… Lower pollution degree for purification plants Service life up to 10 years at regular usage Simple connection to infiltration systems or sewage systems Loading class E 600 kN Optional control- and water sampling shaft Low investment and follow up costs Easy replacement of the pre-filter fleece Easy replacement of the filter material by suction with sewer cleaning equipment Rapid locking system (for Class C gratings) enables quick mounting and dismounting Trafficable channels offer a gain of space compared to infiltration basins Usable at high ground water levels until about 1,7 m below the ground level Infiltration is possible either below the channel or via sewer pipes No danger of remobilization of heavy metals through saline water Homogeneous material, no demixing during installation or usage
