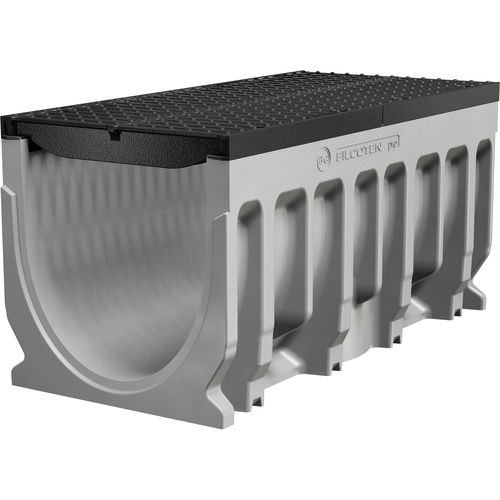

Drainage channel with grating FILCOTEN PRO 400
fiber-reinforced concretewith metal gratefor public spaces

drainage channel with grating
drainage channel with grating
drainage channel with grating
drainage channel with grating
drainage channel with grating
drainage channel with grating
drainage channel with grating
Add to favorites
Compare this product


Characteristics

Configuration
with grating
Material
fiber-reinforced concrete
*grid material
with metal grate
Applications
for public spaces

Description

Channel body made of FILCOTEN with cast iron edges. The innovative design of the channel body that is incredibly light and easy to handle - without losing the necessary stability. FILCOTEN pro drainage channels are, depending on the gratings, suitable for applications up to Class E 600 kN. Operational areas Carriageways of roads (including pedestrian zones), road verges, car parks and similar fortified thoroughfares. Technical data: System - FILCOTEN pro 400 length - 1000 mm overall width - 490 mm nominal width - 400 mm slope - without slope overall height - channel Nr. 0 490 mm weight without grating channel Nr. 0 - ca. 146 kg channel Nr. 0 - ca. 146 kg
