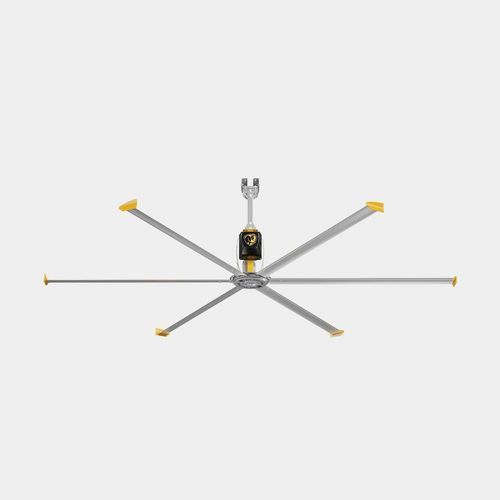

Helical ceiling fan POWERFOIL® 6

ceiling mountindustrialcommercial

Overview Powerfoil® 6 delivers the airflow, durability, and safety Big Ass Fans is known for — at a price point that makes it practical to bring large‑scale airflow to industrial and commercial spaces.

Key Features

• Fully wired, factory tested: Ships pre-wired with onboard VFD and variable-speed control; factory tested prior to shipment.
• Built to run for years: Vented helical gearbox with inline helical-cut gears, lubricated for life with synthetic oil; industrial-grade motor (≈1.0–2.0 hp depending on diameter).
• Quiet operation: Noise level under 55 dBA, suitable for occupied workspaces.
• Redundant safety: Double safety cables, airfoil retainers, hub clips, Grade 8 hardware, and fire relay integration standard.

Control Options

• Wired Standard Controller: Included; provides smooth variable-speed control via OLED touchscreen; optional passcode protection.
• BAFCon Controller: Upgrade with SmartSense™ to automatically adjust speeds, network up to 24 fans, and integrate with building management systems via a durable touchscreen.

Mounting Options

• I-Beam: Standard industrial mounting.
• Bar Joists: Compatible using angle irons and Grade 8 hardware.
• Z-Purlins: For metal building roof framing (Z-purlin kit sold separately).
• Solid Beam / Glulam: Available with engineering review.

Applications & Benefits Powerfoil® 6 is an industrial HVLS fan designed to provide efficient large‑area air movement, reduce perceived temperature, and support energy management strategies in warehouses, manufacturing plants, distribution centers, and large commercial facilities.

Technical Documentation Available Technical specifications, warranty details, installation guide, and clearance guidelines are available for planning and compliance.

Technical specifications

• Denomination: Powerfoil® 6
• Available diameters: 8 ft., 10 ft., 12 ft., 14 ft., 16 ft., 18 ft., 20 ft., 24 ft.
• Extension tube length options: 2 ft., 5 ft.
• Input power options: 200–250V / 1PH; 200–250V / 3PH; 400–480V / 3PH.
• Motor: Industrial-grade motor, ~1.0–2.0 hp depending on size.
• Gearbox: Vented helical gearbox with inline helical-cut gears, lubricated for life with synthetic oil.
• Noise level: Under 55 dBA.
• Safety features: Double safety cables, airfoil retainers, hub clips, Grade 8 hardware, fire relay integration.
• Controller options: Standard wired controller (OLED touchscreen) or optional BAFCon with SmartSense™ and multi-fan integration.
• Factory pre-wired with onboard VFD and variable speed control; factory tested.
