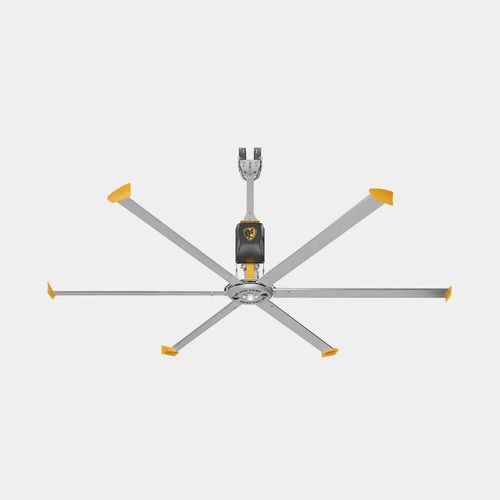

Helical fan SHOPFAN

roofindustrialindoor

Overview
SHOPFAN is a 14 ft industrial HVLS fan that plugs into a standard 15A outlet. The unit ships pre-wired and factory tested for immediate installation and operation via the included OLED touchscreen controller.

Key Features

• Ready to Run Out of the Box: Pre-wired, factory tested, includes 15 ft power cord compatible with standard 100–120V, 15A outlets; mount, plug in, and adjust speed from the OLED touchscreen.
• Industrial Gearbox: Vented helical gearbox with inline helical-cut gears; lubricated for life with synthetic oil and driven by a 1.0 hp industrial-grade motor for reliable drivetrain performance scaled for smaller industrial spaces.
• 59,425 CFM — 14 ft Coverage: Six patented Powerfoil airfoils with winglets deliver up to 59,425 CFM across a 14 ft diameter; includes a 2 ft extension tube and supports mounting to I-beams, bar joists, purlins, or solid beams.
• Redundant Safety at Every Point: Double safety cables, airfoil retainers, hub clips, Grade 8 hardware, and fire relay integration provide multiple layers of mechanical and electrical safety.

Control Option

• Wired Standard Controller: Included with each fan; provides smooth variable-speed control via an easy-to-use OLED touchscreen. Optional passcode protection is available to restrict access to settings.

Mounting Options

• I-Beam: Standard industrial mounting configuration.
• Bar Joists: Compatible with bar joist ceilings using angle irons and Grade 8 mounting hardware.
• Z-Purlins: Suitable for metal building roof framing with Z-purlins (Z-purlin kit sold separately).
• Solid Beam / Glulam: Possible installation on solid beams or glulam; may require engineering review.

Technical Documentation

• Tech Specs (cutsheet)
• Warranty
• Install Guide
• Clearance Guidelines (fan distance guidelines)

Technical specifications

• Model family: SHOPFAN
• Fan diameter: 14 ft
• Maximum airflow: Up to 59,425 CFM across 14 ft diameter
• Airfoils: Six patented Powerfoil airfoils with winglets
• Includes: 2 ft extension tube
• Power: Plugs into standard 100–120V, 15A outlet (15 ft power cord included)
• Motor: 1.0 hp industrial-grade motor
• Drivetrain: Vented helical gearbox with inline helical-cut gears, lubricated for life with synthetic oil
• Controller: Wired standard OLED touchscreen controller (variable speed; optional passcode protection)
• Safety features: Double safety cables, airfoil retainers, hub clips, Grade 8 hardware, fire relay integration
• Mounting: Compatible with I-beams, bar joists, Z-purlins, and solid beams (engineering review may be required for some mounts)
• Shipping / packaging state: Pre-wired and factory tested
