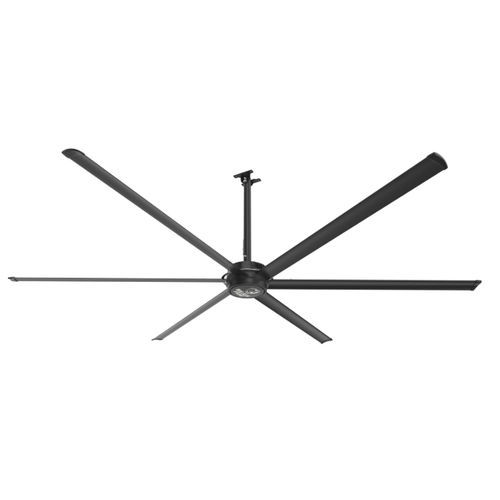

Ceiling mount ceiling fan E SERIES

industrialcommercialindoor

Overview
The E‑Series HVLS industrial ceiling fan is designed to move large volumes of air in commercial and industrial spaces while using a standard 110–125 V household circuit. It provides significant airflow (equivalent to up to 51 standard ceiling fans), installs on bar joists, and operates with low acoustic emission for occupied facilities.

Key Features

• Simple installation: engineered for straightforward mounting to bar joists and compatible with standard household circuits (no special wiring required).
• Quiet, gearless direct‑drive motor: smooth operation rated at approximately 35 dBA for applications where low noise is required.
• Manageable weight and durable construction: unit weight approx. 69–83 lbs (31–38 kg); six anodized airfoils with yellow‑and‑black winglets for industrial performance.
• Energy‑efficient airflow: optimizes air circulation to reduce HVAC load and minimize hot spots in large spaces.
• Multiple diameter and color options: available in 7 ft., 10 ft., and 12 ft. diameters; standard colors Black and Silver.

Technical documentation (available)

• Tech Specs (cutsheet)
• Warranty document
• Install Guide
• CLEARANCE GUIDELINES (PDF)

Services

• Factory‑certified installation network for industrial and commercial projects (coordinated project installation).
• Annual Preventive Maintenance program with a 30‑point inspection and cleaning per fan and service records.
• Customization options: colors and finishes available on request.

Technical specifications

• Commercial/Model name: E‑Series
• Voltage / Circuit: standard household circuit, 110–125 V
• Noise level: approximately 35 dBA
• Weight: approx. 69–83 lbs (31–38 kg)
• Blades / Airfoils: 6 anodized airfoils with yellow‑and‑black winglets
• Diameter options: 7 ft., 10 ft., 12 ft.
• Available colors: Black, Silver
• Motor: gearless direct‑drive motor (quiet, energy‑efficient)
• Mounting: designed to mount to bar joists
• Performance claim: delivers airflow equivalent to up to 51 standard ceiling fans; helps reduce AC usage by improving air circulation
• Price (range shown on page): $3,799.00 - $4,499.00
